Dzinēja kontaktors CEM250.22-230V-50/60Hz 004656143
Specifikācijas
- ETI kods:
- 004656143
- Apraksts:
- CEM250.22-230V-50/60Hz
- Klases nosaukums:
- Dzinēja kontaktors
- Funkcija:
- Motoru kontaktors
- I (AC1):
- 350
- I (AC3 400V):
- 250
- Nominālais darba spriegums (V AC):
- 1000
- Nominālais vadības ķēdes spriegums Uc (V AC): 230:
- 230
- P (AC3 kw):
- 132
- Polu skaits:
- 3
- Aux NO/NC kontaktu skaits:
- 2
- Aux NO/NC kontaktu skaits:
- 2
Dokumenti
Loģistikas dati
Produkts
- Muitas tarifs
- 85364900
- logis_net_width
- 145 mm
- logis_net_height
- 205 mm
- logis_net_depth
- 182 mm
2. līmeņa iepakojums
- Iepakojuma daudzums
- 1
- Iepakojuma EAN
- 7890355109229
- Iepakojuma svars
- 6.725 kg
- Paletes daudzums
- 133
ETIM klasifikācija
- Klasifikācija
- EC000066
- Klases nosaukums
- Power contactor, AC switching
- Rated control supply voltage AC 50 Hz
- 230…230V
- Rated control supply voltage AC 60 Hz
- 230…230V
- Rated control supply voltage DC
- 230…230V
- Voltage type for actuating
- AC
- Rated operation current Ie at AC-1, 400 V
- 350A
- Rated operation current Ie at AC-3, 400 V
- 250A
- Rated operation power at AC-3, 400 V
- 132kW
- Modular version
- Ziņojums
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Type of electrical connection of main circuit
- Rail connection
- Number of normally open contacts as main contact
- 3

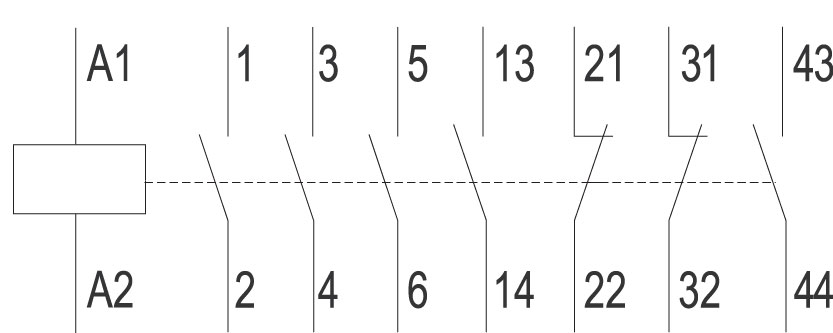

Attēli un diagrammas
