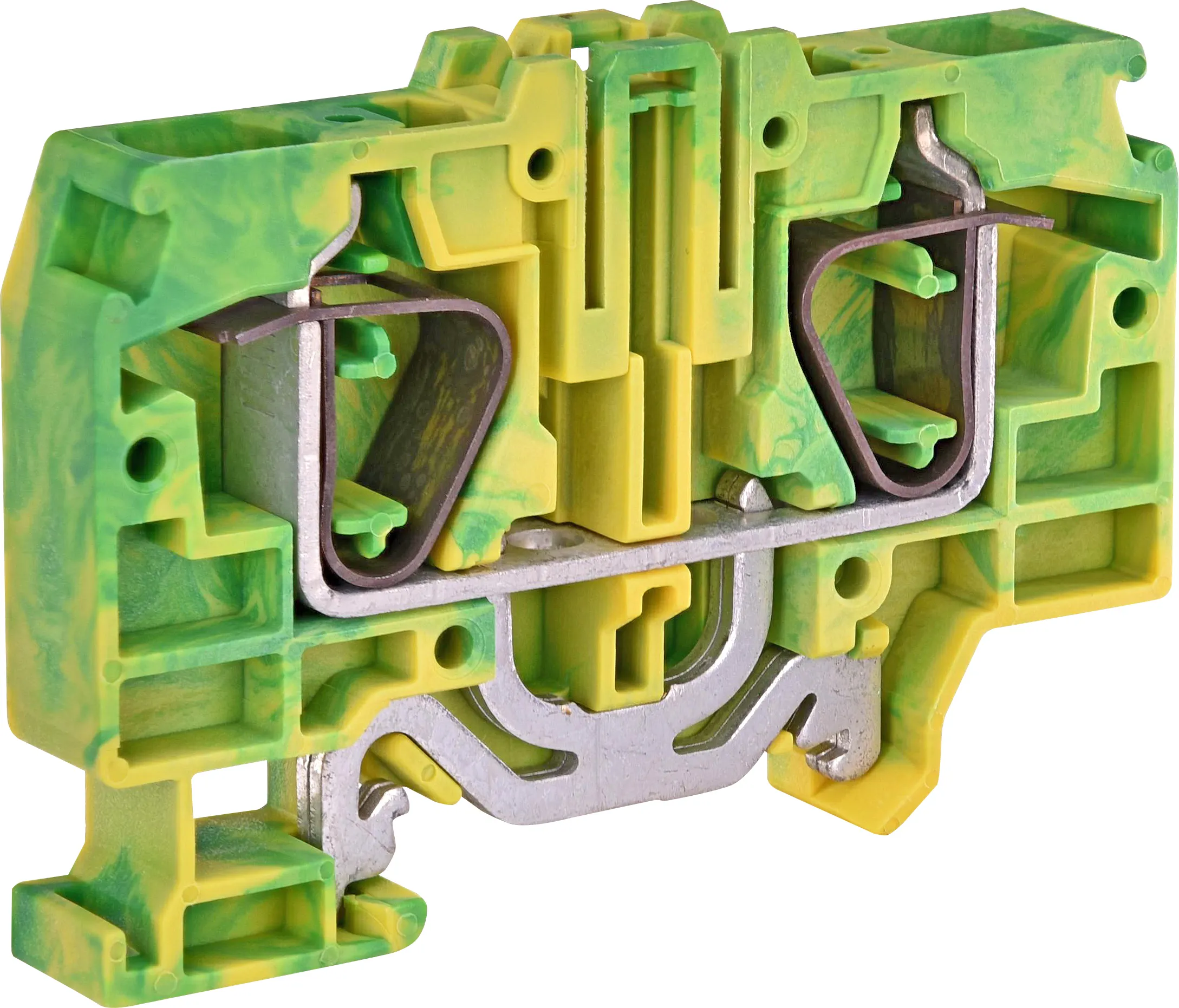

Zemējuma savienojumi ESP-HTE.16 003903195
Specifikācijas
- ETI kods:
- 003903195
- Apraksts:
- ESP-HTE.16
- Klases nosaukums:
- Zemējuma savienojumi
- Tips:
- ES Spring Clamp Terminal Blocks
- Līmenis:
- Viens
- Krāsa:
- Yellow,Green
- Nominālais šķērsgriezums:
- 16mm2
- Nominālais impulsa izturības spriegums Uimp (kV):
- 12kV
- Šķērssavienojums:
- NO
- Nepieciešama beigu sadaļa:
- YES
Dokumenti
Loģistikas dati
Produkts
- Etikoda EAN
- 3838895862680
- Etikoda svars
- 24 g
- Muitas tarifs
- 85369010
- logis_net_width
- 12 mm
- logis_net_height
- 80 mm
- logis_net_depth
- 56 mm
2. līmeņa iepakojums
- Iepakojuma daudzums
- 30
- Iepakojuma EAN
- 3838895789895
- Iepakojuma svars
- 1.47 kg
- Paletes daudzums
- 10560
ETIM klasifikācija
- Klasifikācija
- EC000901
- Klases nosaukums
- Ground terminal block
- PEN function possible
- Ziņojums
- Connectable conductor cross section fine-strand without cable end sleeve
- 1.5…25
- Connectable conductor cross section fine-strand with cable end sleeve
- 1.5…16
- Connectable conductor cross section solid-core
- 1.5…25
- Connectable conductor cross section multi-wired
- 1.5…25
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -40…100
- Inflammability class of insulation material according to with UL94
- V0
- Closing plate required
- Jā
- Colour
- Green/yellow
