The ETISIG range offers a comprehensive selection of pushbuttons, selector switches, LED indicators, contact blocks and accessories for industrial control and signalling applications. Its modular design enables flexible configuration of control stations for a wide variety of electrical installations.

004770229

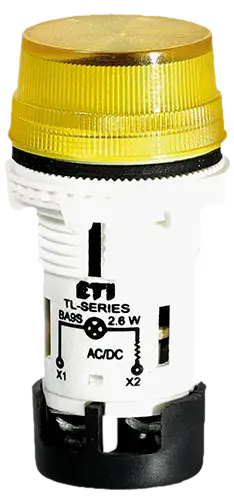

Attēls no *TL04U1

*TL04U1 Spiedpoga ar signalu

ETI kods:: 004770229
Funkcija:: Compact integral indicator
Krāsa:: Black body
Tips:: With ribbed lens, without trim collar
Cauruma diametrs (mm):: 22,5 mm
Kataloga grupa 1:: Mygtukai ir lemputės H-line
IP aizsardzība:: IP65

Produkts

EAN code for a single product: 3838400026576
Svars: 0,024 kg
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 20 pcs
EAN code for a basic packaging: 3838895379614
Basic packaging weight: 0,457 kg
Basic packaging volume: 1,3 dm³

Transporta iepakojums

Transport packaging quantity: 320 pcs
EAN code for a transport packaging: 3838895379621
Transport packaging weight: 7,812 kg
Transport packaging volume: 27 dm³
Pallet quantity: 21 440 pcs
Customs tariff: 85395100

Colour lens: Yellow
Voltage type: AC
Type of lamp socket: BA9s
Degree of protection (IP): IP65
Hole diameter: 22,5 mm
Construction type lens: Round
Type of lens: High
Type of electric connection: Screw connection
Number of indicator lights: 1
Rated operating voltage Ue(Min): 24 V
Rated operating voltage Ue(Max): 24 V

ETIM klasifikācija – versija 9.0

004770229 Spiedpoga ar signalu *TL04U1 ETISIG Izpildmehānismi un indikatori Izpildmehānismi un indikatori Indicators Filament lamp 24V AC/DC Internacionāls Automatizācijas, signalizācijas un vadības ierīces Izpildmehānismi un indikatori Indicators Krāsa: Black body Funkcija: Compact integral indicator IP aizsardzība: IP65 Cauruma diametrs (mm): 22.5 mm Kataloga grupa 1: Mygtukai ir lemputės H-line Spiedpoga ar signalu TOWAR
