The ETISIG range offers a comprehensive selection of pushbuttons, selector switches, LED indicators, contact blocks and accessories for industrial control and signalling applications. Its modular design enables flexible configuration of control stations for a wide variety of electrical installations.

004771614

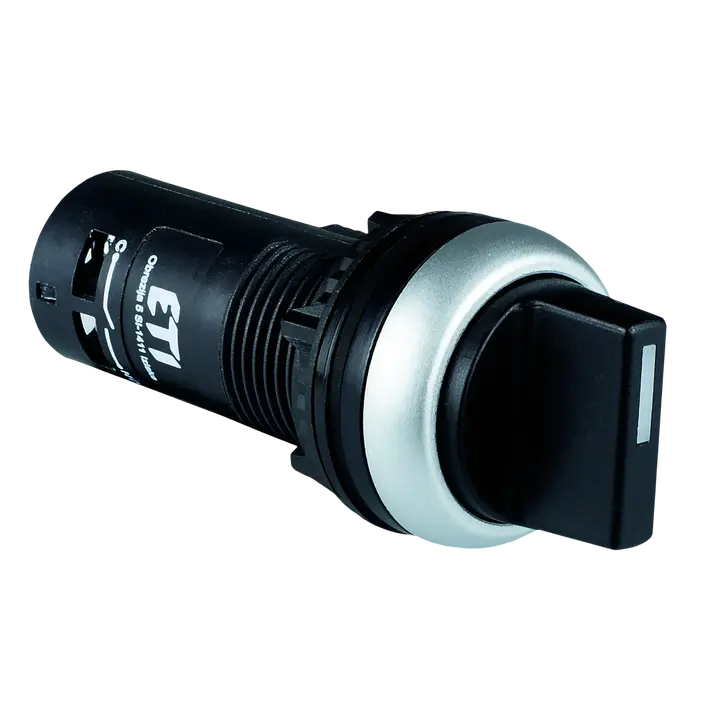

Attēls no ECS2-10

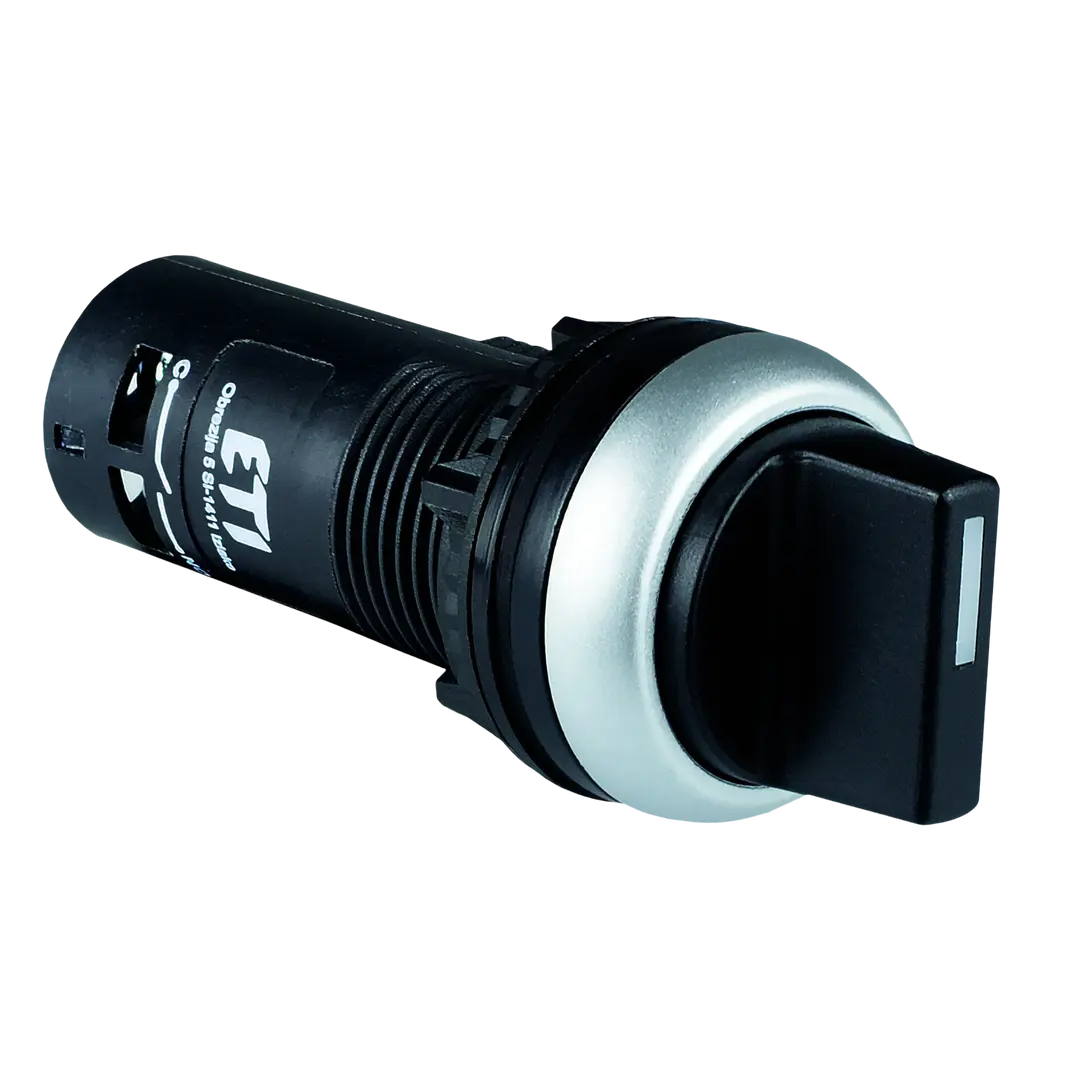

ECS2-10 Paketslēdzis

ETI kods:: 004771614
IP aizsardzība:: IP65
Tips:: Compact integral actuators NO
Funkcija:: Non-illuminated actuators

Produkts

Svars: 0,002 kg
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 20 pcs
EAN code for a basic packaging: 3838895874775
Basic packaging weight: 0,53 kg
Basic packaging volume: 1,12 dm³

Transporta iepakojums

Transport packaging quantity: 300 pcs
EAN code for a transport packaging: 3838895874782
Transport packaging weight: 8,45 kg
Transport packaging volume: 26,9 dm³
Pallet quantity: 11 100 pcs
Customs tariff: 85389099

Colour button: Black
Degree of protection (IP): IP65
Type of control element: Short thumb-grip
Material front ring: Plastic
Number of switch positions: 2
Hole diameter: 22,5 mm
Colour front ring: Black
Number of contacts as normally open contact: 1
Type of electric connection: Screw connection
Supply voltage(Min): 240 V
Supply voltage(Max): 240 V

ETIM klasifikācija – versija 9.0

004771614 Paketslēdzis ECS2-10 ETISIG Izpildmehānismi un indikatori Izpildmehānismi un indikatori Non-illuminated actuators Non-illuminated actuators Compact integral actuators rotary type, 2 - positions Internacionāls Automatizācijas, signalizācijas un vadības ierīces Izpildmehānismi un indikatori Vadības gaismas un pogas ar piederumiem Tips: Compact integral actuators NO Funkcija: Non-illuminated actuators IP aizsardzība: IP65 Paketslēdzis Tips: Compact integral actuators NO Funkcija: Non-illuminated actuators
