Monitoring and control relays are crucial elements in modern electrical systems, responsible for ensuring safety, reliability, and efficient operation. These relays go beyond simple on/off switches, actively monitoring various electrical parameters, such as voltage, current, frequency, and level. They trigger pre-defined actions based on these monitored conditions, acting as intelligent intermediaries to protect equipment, prevent faults, and automate processes.

002471202

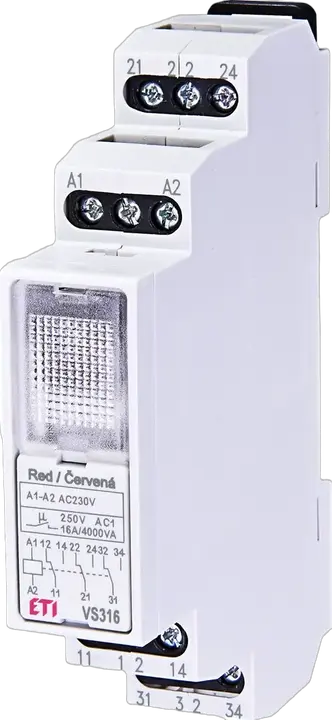

Attēls no VS316K/230 red

VS316K/230 red Spēka relejs

ETI kods:: 002471202
Kategorija:: Power Relays
Kataloga grupa 1:: Tarpinės relės
Kataloga grupa 2:: Power relay
Tips:: Power Relays
Funkcija:: Monitoring and Control relays
Barošanas spriegums (V):: 230 V
Kontroles veids:: Signalizacija ir valdymas
Kontaktu skaits:: 3
Sprieguma veids:: AC, AC/DC
Maksimālā kravnesība AC1 (VA):: 4 000 VA
Nominālā strāva:: 16 A
Kontaktu veids:: 1xCO
Kontaktu skaits:: 1

Produkts

Svars: 0,11 kg
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895423676
Basic packaging weight: 0,1 kg
Basic packaging volume: 0,11 dm³

Transporta iepakojums

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895423683
Transport packaging weight: 1,1 kg
Transport packaging volume: 1,6 dm³
Pallet quantity: 7 270 pcs
Customs tariff: 85364900

Built-in depth: 64 mm
Type of switch contact: Single contact
Width: 18 mm
Max. load fluorescent lamp: 690 VA
Nominal current: 16 A
Degree of protection (IP): IP20
Mounting method: DIN rail
Max. load fluorescent lamp (parallel compensated): 690 VA
Max. switching current (cos phi = 0.6): 2 A
Max. load fluorescent lamp (Duo circuit): 690 VA
Depth: 64 mm
Type of control voltage 1: AC
Function: Mechanical
Max. incandescent lamp load: 1 000 W
Type of electric connection: Screw connection
Number of contacts as change-over contact: 3
Height: 90 mm
Width in number of modular spacings: 1
Control voltage 1(Min): 230 V
Frequency control voltage 1(Min): 50 Hz
Control voltage 1(Max): 230 V
Frequency control voltage 1(Max): 60 Hz

ETIM klasifikācija – versija 9.0

002471202 Spēka relejs VS316K/230 red EVE/ETIREL Control equipment Relays Relays Power relay Power relay Internacionāls Automatizācijas, signalizācijas un vadības ierīces Monitoringa releji Kontaktu veids: 1xCO NO/NC kontaktu skaits: 0 Sprieguma veids: AC, AC/DC Kontaktu skaits: 3 Kontaktu skaits: 1 Kontroles veids: Signalizacija ir valdymas Funkcija: Monitoring and Control relays Maksimālā kravnesība AC1 (VA): 4000 VA NO kontaktu skaits: 0 Barošanas spriegums (V): 230 V-230 V Nominālā strāva: 16 A/16 A DC nominālais vadības barošanas spriegums Uc (V): 0 V-0 V Spēka relejs TOWAR Funkcija: Monitoring and Control relays Barošanas spriegums (V): 230 V-230 V Kontroles veids: Signalizacija ir valdymas Kontaktu skaits: 3 Sprieguma veids: AC, AC/DC Nominālā strāva: 16 A/16 A Maksimālā kravnesība AC1 (VA): 4000 VA Kontaktu veids: 1xCO NO/NC kontaktu skaits: 0 Kontaktu skaits: 1 NO kontaktu skaits: 0 DC nominālais vadības barošanas spriegums Uc (V): 0 V-0 V
