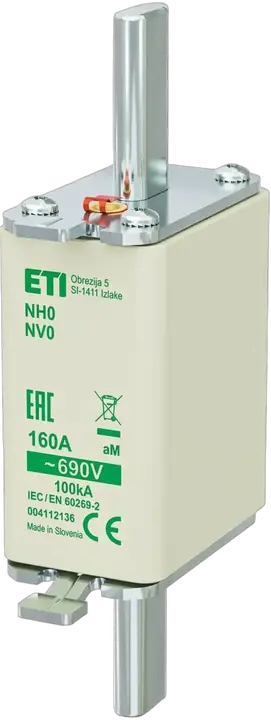

NH0 aM 160A/690V Drošinātājs

ETI kods:: 004112136
Tips:: NH
Izmērs:: NH0
Nominālā strāva:: 160 A
Raksturlielumi:: aM
Indikators:: Viršutinis saugiklio būsenos indikatorius
Nominālais maiņstrāvas spriegums:: 690 V
Atjungimo geba (AC) (kA):: 100 kA
Pd (W):: 10,5 W
Džoula integrālis (A2s):: 63 000
Darbības džoula integrālis(A2s):: 187 000
Standarti:: VDE 0636-2011
Pieteikums:: For relays, contactors and motors protection in case of short-circuit

Piederumi

Produkts

EAN code for a single product: 5904722911598
Svars: 265 g
Net width: 29,5 mm
Net height: 124,9 mm
Net depth: 56,2 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895022718
Basic packaging weight: 0,83 kg
Basic Packaging Dimensions Height: 0,066 m
Basic Packaging Dimensions Width: 0,093 m
Basic Packaging Dimensions Depth: 0,138 m
Basic packaging volume: 0,001 m³

Transporta iepakojums

Transport packaging quantity: 45 pcs
EAN code for a transport packaging: 3838895159537
Transport packaging weight: 12,794 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 2 340 pcs
Customs tariff: 85361090

Rated switching capacity AC: 100 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH0
Rated voltage AC: 690
Power loss at rated current: 10,5 W
Type of fuse status indicator: Top fuse status indicator
Rated current: 160 A
Utilization category: aM (switchgear protection)

ETIM klasifikācija – versija 9.0
