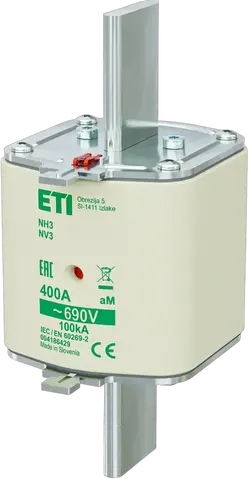

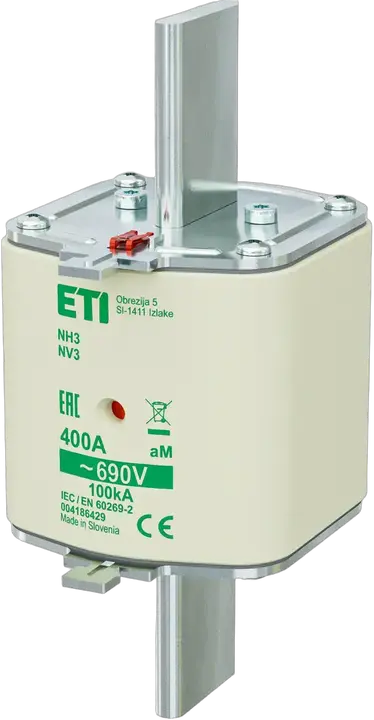

NH3 aM 400A/690V Drošinātājs

ETI kods:: 004186429
Tips:: NH
Izmērs:: NH3
Nominālā strāva:: 400 A
Raksturlielumi:: aM
Indikators:: Kombinuotas saugiklio būklės indikatorius
Nominālais maiņstrāvas spriegums:: 690 V
Atjungimo geba (AC) (kA):: 100 kA
Pd (W):: 29,4 W
Džoula integrālis (A2s):: 317 000
Darbības džoula integrālis(A2s):: 907 500
Standarti:: VDE 0636-2011
Pieteikums:: For relays, contactors and motors protection in case of short-circuit

Piederumi

Produkts

EAN code for a single product: 3838400037794
Svars: 800 g
Net width: 65 mm
Net height: 150,4 mm
Net depth: 83,4 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895392019
Basic packaging weight: 2,488 kg
Basic Packaging Dimensions Height: 0,093 m
Basic Packaging Dimensions Width: 0,203 m
Basic Packaging Dimensions Depth: 0,153 m
Basic packaging volume: 0,003 m³

Transporta iepakojums

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838895392026
Transport packaging weight: 10,302 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 624 pcs
Customs tariff: 85361090

Rated switching capacity AC: 100 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH3
Rated voltage AC: 690
Power loss at rated current: 29,4 W
Type of fuse status indicator: Combination fuse status indicator
Rated current: 400 A
Utilization category: aM (switchgear protection)

ETIM klasifikācija – versija 9.0
