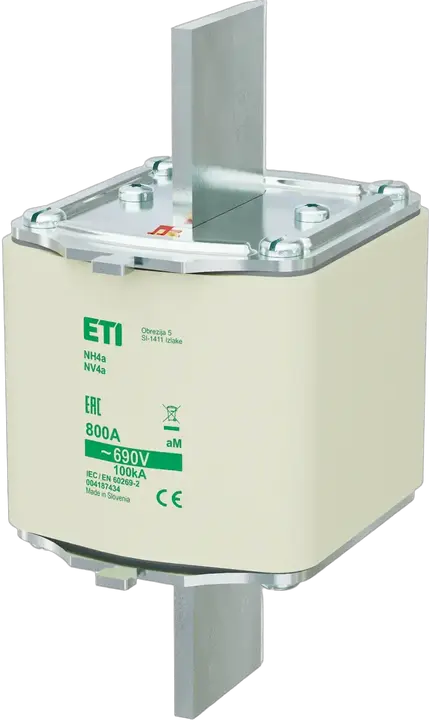

NH4a aM 800A/690V Drošinātājs

ETI kods:: 004187434
Tips:: NH
Izmērs:: NH4a
Nominālā strāva:: 800 A
Raksturlielumi:: aM
Indikators:: Viršutinis saugiklio būsenos indikatorius
Nominālais maiņstrāvas spriegums:: 690 V
Atjungimo geba (AC) (kA):: 100 kA
Pd (W):: 65 W
Džoula integrālis (A2s):: 1 700 000
Darbības džoula integrālis(A2s):: 7 500 000
Standarti:: VDE 0636-2011
Pieteikums:: For relays, contactors and motors protection in case of short-circuit

Piederumi

Produkts

Svars: 2 810 g
Net width: 95 mm
Net height: 200,1 mm
Net depth: 121 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895392118
Basic packaging weight: 2,909 kg
Basic Packaging Dimensions Height: 0,1 m
Basic Packaging Dimensions Width: 0,212 m
Basic Packaging Dimensions Depth: 0,152 m
Basic packaging volume: 0,003 m³

Transporta iepakojums

Transport packaging quantity: 4 pcs
EAN code for a transport packaging: 3838895715603
Transport packaging weight: 11,958 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,365 m
Transport Packaging Dimensions Depth: 0,25 m
Transport packaging volume: 0,023 m³
Pallet quantity: 144 pcs
Customs tariff: 85361090

Rated switching capacity AC: 100 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH4a
Rated voltage AC: 690
Power loss at rated current: 65 W
Type of fuse status indicator: Top fuse status indicator
Rated current: 800 A
Utilization category: aM (switchgear protection)

ETIM klasifikācija – versija 9.0
