004110234

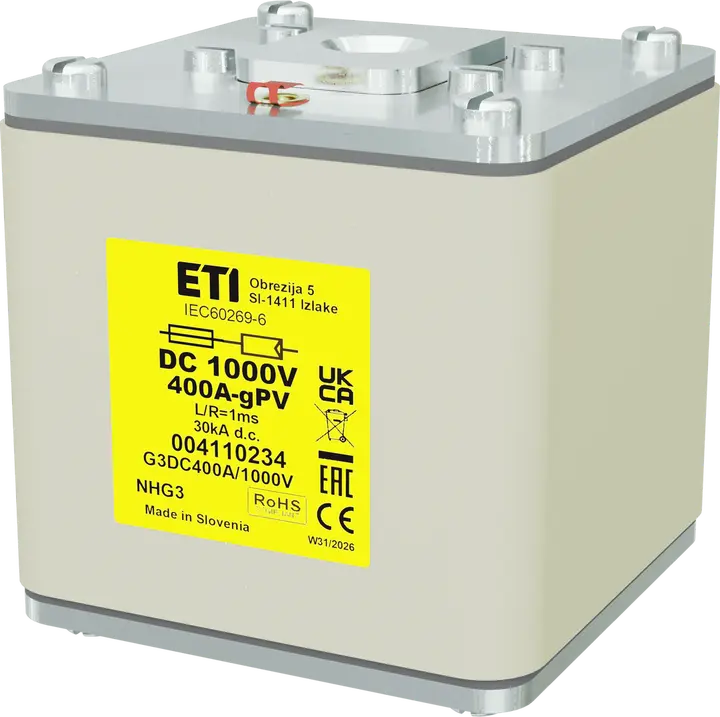

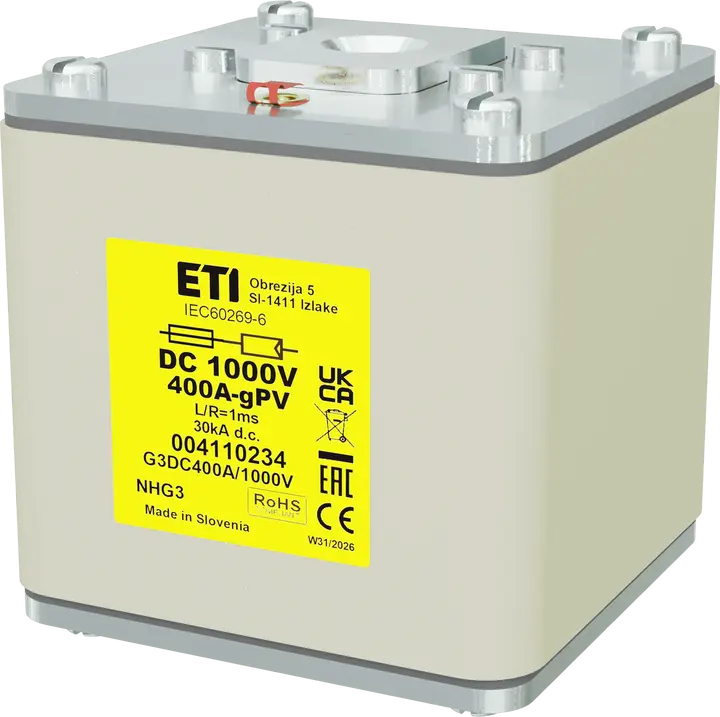

NHG3 gPV 400A/1000V DC Drošinātājs

ETI kods:: 004110234
Tips:: NH-G
Izmērs:: NH3
Nominālā strāva:: 400 A
Raksturlielumi:: gPV
Indikators:: MK išjungimo centro indikatorius
Nominālais līdzstrāvas spriegums:: 1000 V
Atjungimo geba (DC) (kA):: 30 kA
L/R (ms):: 1 ms
Jaudas izkliede (0,7xIn) (W):: 24 W
Pd (W):: 58 W
Džoula integrālis (A2s):: 46 000
Darbības džoula integrālis(A2s):: 138 000
Standarti:: IEC 60269-6
Pieteikums:: Fuse link for DC application

Produkts

EAN code for a single product: 3838400057419
Svars: 1 250 g
Net width: 73 mm
Net height: 75 mm
Net depth: 73 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 2 pcs
EAN code for a basic packaging: 3838895956785
Basic packaging weight: 2,54 kg
Basic Packaging Dimensions Height: 0,152 m
Basic Packaging Dimensions Width: 0,09 m
Basic Packaging Dimensions Depth: 0,074 m
Basic packaging volume: 0,001 m³

Transporta iepakojums

Transport packaging quantity: 8 pcs
EAN code for a transport packaging: 3838895956792
Transport packaging weight: 10,237 kg
Transport Packaging Dimensions Height: 0,165 m
Transport Packaging Dimensions Width: 0,195 m
Transport Packaging Dimensions Depth: 0,16 m
Transport packaging volume: 0,005 m³
Pallet quantity: 896 pcs
Customs tariff: 85361090

Voltage type: DC
Fuse construction type according to IEC 60269: NH3
Power loss at rated current: 58 W
Rated switching capacity DC: 30 kA
Type of fuse status indicator: Other
Rated current: 400 A
Rated voltage DC: 1 000
Utilization category: gPV (photovoltaic protection)
