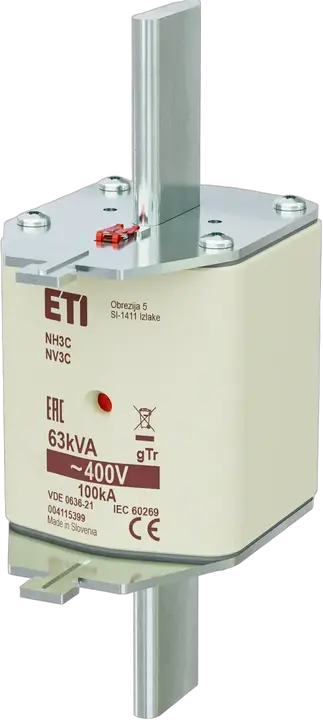

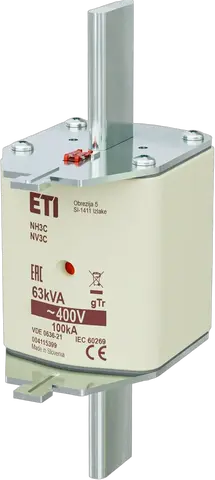

NH3C gTr 91A/400V/63kVA Drošinātājs

ETI kods:: 004115399
Tips:: NH
Izmērs:: NH3C
Transformatorius:: 63 kVA
Raksturlielumi:: gTr
Indikators:: Kombinuotas saugiklio būklės indikatorius
Nominālais maiņstrāvas spriegums:: 400 V
Atjungimo geba (AC) (kA):: 100 kA
Pd (W):: 8,2 W
Džoula integrālis (A2s):: 37 000
Darbības džoula integrālis(A2s):: 140 000
Standarti:: VDE 0636-21
Pieteikums:: Protection of transformers

Piederumi

Produkts

EAN code for a single product: 3838895815419
Svars: 585 g
Net width: 54 mm
Net height: 150,2 mm
Net depth: 84,4 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895798927
Basic packaging weight: 1,825 kg
Basic Packaging Dimensions Height: 0,089 m
Basic Packaging Dimensions Width: 0,169 m
Basic Packaging Dimensions Depth: 0,153 m
Basic packaging volume: 0,002 m³

Transporta iepakojums

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838895798934
Transport packaging weight: 7,65 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 624 pcs
Customs tariff: 85361090

Rated switching capacity AC: 100 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH3C
Rated voltage AC: 400
Power loss at rated current: 8,2 W
Type of fuse status indicator: Combination fuse status indicator
Rated current: 91 A
Utilization category: gTr (Transformer protection)

ETIM klasifikācija – versija 9.0
