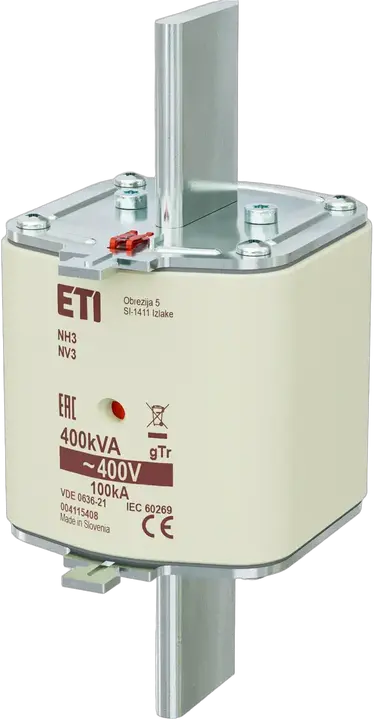

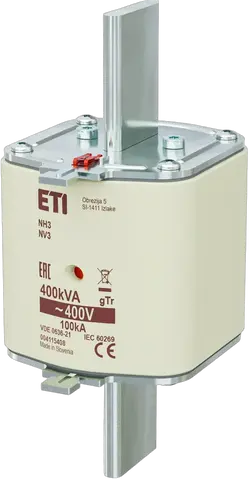

NH3 gTr 577A/400V/400kVA Drošinātājs

ETI kods:: 004115408
Tips:: NH
Izmērs:: NH3
Transformatorius:: 400 kVA
Raksturlielumi:: gTr
Indikators:: Kombinuotas saugiklio būklės indikatorius
Nominālais maiņstrāvas spriegums:: 400 V
Atjungimo geba (AC) (kA):: 100 kA
Pd (W):: 36,5 W
Džoula integrālis (A2s):: 940 000
Darbības džoula integrālis(A2s):: 3 900 000
Standarti:: VDE 0636-21
Pieteikums:: Protection of transformers

Piederumi

Produkts

EAN code for a single product: 5904722988897
Svars: 800 g
Net width: 65 mm
Net height: 150,4 mm
Net depth: 83,4 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895612636
Basic packaging weight: 2,488 kg
Basic Packaging Dimensions Height: 0,093 m
Basic Packaging Dimensions Width: 0,203 m
Basic Packaging Dimensions Depth: 0,153 m
Basic packaging volume: 0,003 m³

Transporta iepakojums

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838895401216
Transport packaging weight: 10,302 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 624 pcs
Customs tariff: 85361090

Rated switching capacity AC: 100 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH3
Rated voltage AC: 400
Power loss at rated current: 36,5 W
Type of fuse status indicator: Combination fuse status indicator
Rated current: 577 A
Utilization category: gTr (Transformer protection)

ETIM klasifikācija – versija 9.0

Eplan

Programmatūra tiek nodrošināta tāda, kāda tā ir, bez jebkādām garantijām. Autors nav pienākumā sniegt atbalstu, servisu, labojumus vai jauninājumus bezmaksas programmatūrai vai draiberiem.

Piederumi 37 Visi piederumi

001690914

KVL-B-3 3p M10-M10

001690926

KVL-B/FT-3 3p M10-M10

001690933

KVL-B/SF-3 1p M10-M10

001691027

VL3 M12

001691028

VL3 SP.300

001692310

SL3 1P M12

001692311

SL3 1P SP.300

001692312

SL3 1P SP.240

001692330

SL3 3P M12

001692331

SL3 3P SP.300

001692332

SL3 3P SP.240

001693030
