004184436

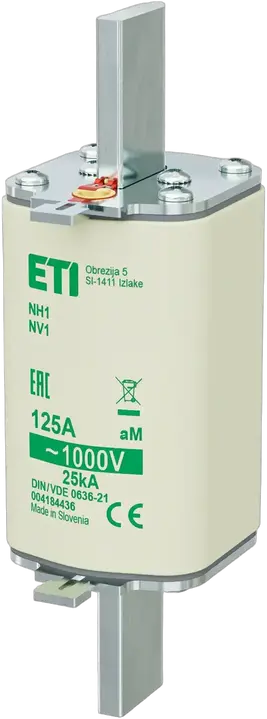

NH1/85 aM 125A/1000V Drošinātājs

ETI kods:: 004184436
Tips:: NH
Izmērs:: NH1/85
Nominālā strāva:: 125 A
Raksturlielumi:: aM
Indikators:: Viršutinis saugiklio būsenos indikatorius
Nominālais maiņstrāvas spriegums:: 1000 V
Atjungimo geba (AC) (kA):: 25 kA
Pd (W):: 21 W
Džoula integrālis (A2s):: 45 000
Darbības džoula integrālis(A2s):: 230 000
Standarti:: VDE 0636-2011
Pieteikums:: For relays, contactors and motors protection in case of short-circuit

Piederumi

Produkts

Svars: 550 g
Net width: 47 mm
Net height: 156,2 mm
Net depth: 62,8 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895640752
Basic packaging weight: 0,55 kg
Basic Packaging Dimensions Height: 0,055 m
Basic Packaging Dimensions Width: 0,205 m
Basic Packaging Dimensions Depth: 0,076 m
Basic packaging volume: 0,001 m³

Transporta iepakojums

Transport packaging quantity: 16 pcs
EAN code for a transport packaging: 3838400130617
Transport packaging weight: 9,15 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 832 pcs
Customs tariff: 85361090

Rated switching capacity AC: 25 kA
Voltage type: AC
Fuse construction type according to IEC 60269: Other
Rated voltage AC: 1 000
Power loss at rated current: 21 W
Type of fuse status indicator: Top fuse status indicator
Rated current: 125 A
Utilization category: aM (switchgear protection)

ETIM klasifikācija – versija 9.0
