004186434

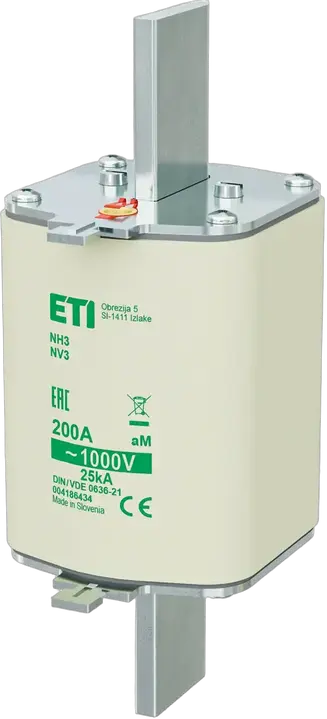

NH3/85 aM 200A/1000V Drošinātājs

ETI kods:: 004186434
Tips:: NH
Izmērs:: NH3/85
Nominālā strāva:: 200 A
Raksturlielumi:: aM
Indikators:: Viršutinis saugiklio būsenos indikatorius
Nominālais maiņstrāvas spriegums:: 1000 V
Atjungimo geba (AC) (kA):: 25 kA
Pd (W):: 28 W
Džoula integrālis (A2s):: 110 000
Darbības džoula integrālis(A2s):: 600 000
Standarti:: VDE 0636-2011
Pieteikums:: For relays, contactors and motors protection in case of short-circuit

Piederumi

Produkts

Svars: 980 g
Net width: 64 mm
Net height: 170 mm
Net depth: 84 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895640592
Basic packaging weight: 1,04 kg
Basic Packaging Dimensions Height: 0,077 m
Basic Packaging Dimensions Width: 0,224 m
Basic Packaging Dimensions Depth: 0,102 m
Basic packaging volume: 0,002 m³

Transporta iepakojums

Transport packaging quantity: 9 pcs
EAN code for a transport packaging: 3838895640608
Transport packaging weight: 9,71 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 468 pcs
Customs tariff: 85361090

Rated switching capacity AC: 25 kA
Voltage type: AC
Fuse construction type according to IEC 60269: Other
Rated voltage AC: 1 000
Power loss at rated current: 28 W
Type of fuse status indicator: Top fuse status indicator
Rated current: 200 A
Utilization category: aM (switchgear protection)

ETIM klasifikācija – versija 9.0
