002652020

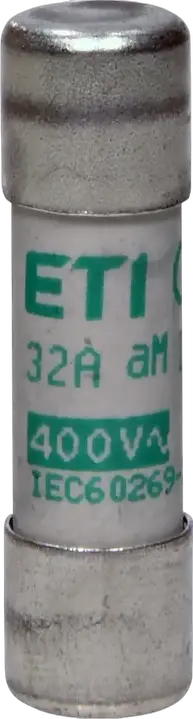

CH10x38 aM 32A/400V Drošinātājs

ETI kods:: 002652020
Tips:: CH
Tips:: CH
Izmērs:: 10x38
Nominālā strāva:: 32 A
Nominālais maiņstrāvas spriegums:: 400 V
Raksturlielumi:: aM
Atjungimo geba (AC) (kA):: 120 kA
Pieteikums:: For relays, contactors and motors protection in case of short-circuit
Pd (W):: 1,8 W
Standarti:: IEC 60269-1, IEC 60269-2

Piederumi

Produkts

EAN code for a single product: 3838400115362
Svars: 0,008 kg
Net width: 10,3 mm
Net height: 38 mm
Net depth: 10,3 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 10 pcs
EAN code for a basic packaging: 3838400095749
Basic packaging weight: 0,085 kg
Basic Packaging Dimensions Height: 13 mm
Basic Packaging Dimensions Width: 80 mm
Basic Packaging Dimensions Depth: 54 mm
Basic packaging volume: 0,056 dm³

Transporta iepakojums

Transport packaging quantity: 1 800 pcs
EAN code for a transport packaging: 3838400095756
Transport packaging weight: 15,78 kg
Transport Packaging Dimensions Height: 140 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 390 mm
Transport packaging volume: 15,834 dm³
Pallet quantity: 68 400 pcs
Customs tariff: 85361050

Voltage type: AC
Size: 10x32 mm
Breaking capacity: 120 kA
Rated voltage: 400 V
Rated current: 32 A
Utilization category: aM (switchgear protection)
Rated operating frequency(Min): 50 Hz
Rated operating frequency(Max): 50 Hz

ETIM klasifikācija – versija 9.0
