004671605

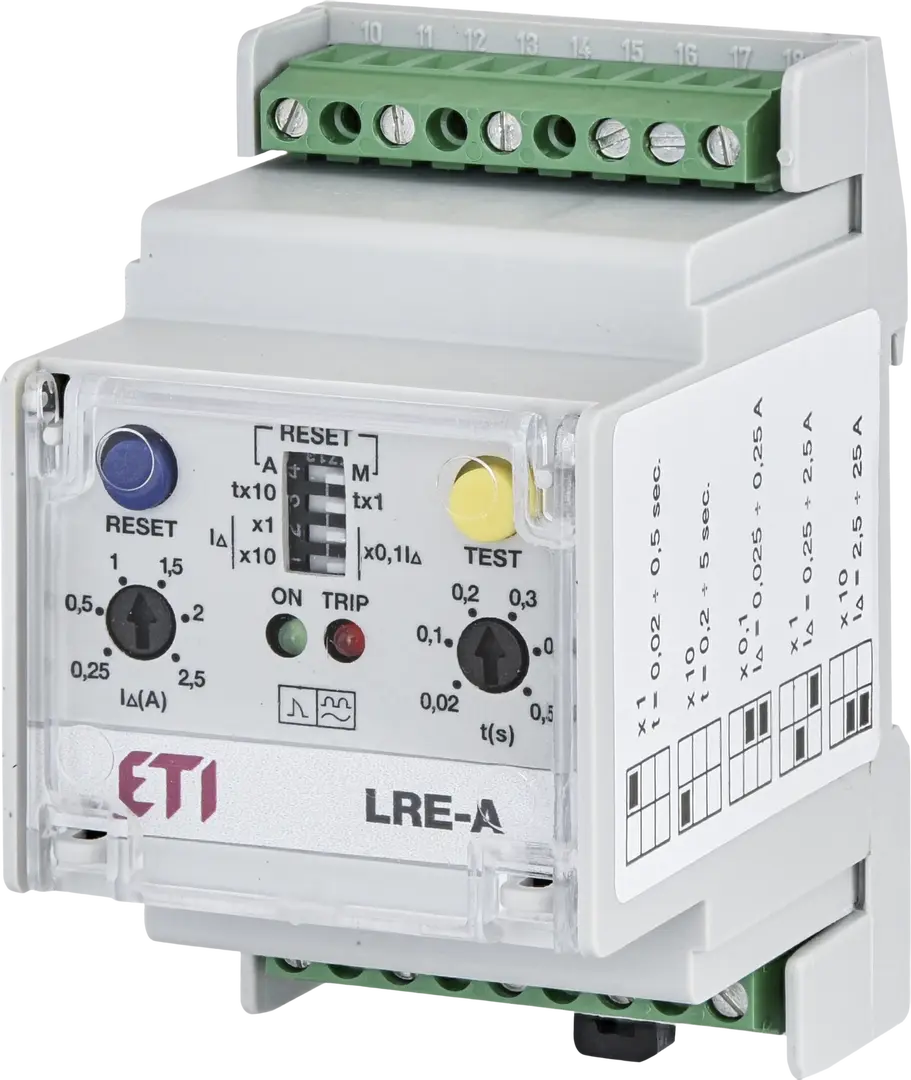

Attēls no LRE-A 12V

LRE-A 12V Strāvas relejs

ETI kods:: 004671605
Funkcionālie piederumi:: Residual current relay
Kontaktu skaits:: 1
DC nominālais vadības barošanas spriegums Uc (V):: 12 V

Produkts

Svars: 0,126 kg
Net width: 52,5 mm
Net height: 85,5 mm
Net depth: 73 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838895505266
Transport packaging weight: 0,18 kg
Transport Packaging Dimensions Height: 110 mm
Transport Packaging Dimensions Width: 60 mm
Transport Packaging Dimensions Depth: 120 mm
Transport packaging volume: 0,792 dm³
Pallet quantity: 1 120 pcs
Customs tariff: 85365080

Width: 52,5 mm
Indication of difference current: Jā
Error registration possible: Jā
Voltage type (supply voltage): AC/DC
With detachable clamps: Jā
Depth: 73 mm
Function: For AC-current system
Type of electric connection: Screw connection
Number of contacts as change-over contact: 1
Height: 85 mm
Rated operating frequency(Min): 50 Hz
Supply voltage AC 50 Hz(Min): 12 V
Supply voltage AC 50 Hz(Max): 12 V

ETIM klasifikācija – versija 9.0

004671605 Strāvas relejs LRE-A 12V ETIBREAK MCCB EB2 Accessories External Accessories EB2 and ED2 125 Internacionāls Formēti korpusi automātiskie slēdži un atvienotāji Zemes noplūdes aizsardzība Strāvas relejs TOWAR
