004483564

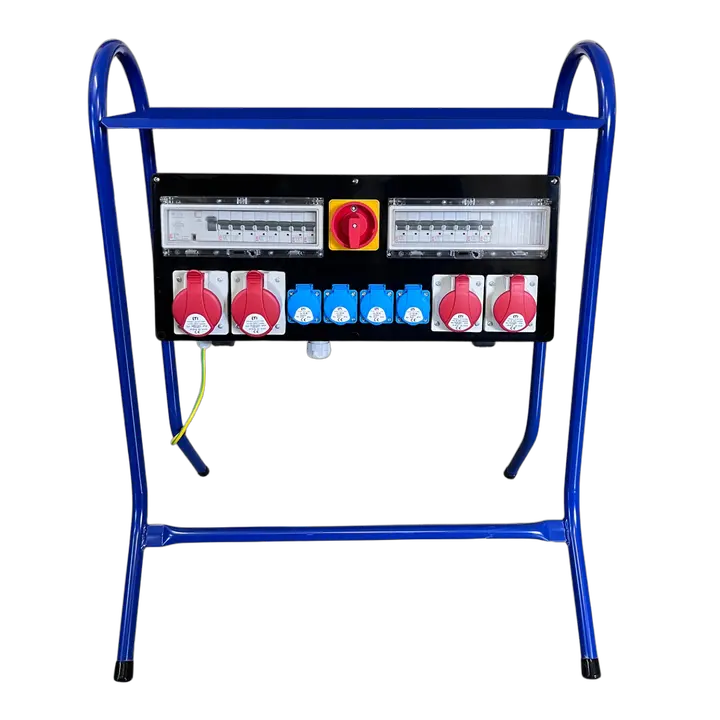

Attēls no EDS24S RCD 4S/4 16/32/VYP C

EDS24S RCD 4S/4 16/32/VYP C Sadalošais panelis

ETI kods:: 004483564
Polu skaits:: 3+N+PE
Nominālā strāva:: 63 A
Tips [ligzda/spraudnis]:: 2x16A(5p), 2x32A(5p), 4xSCHUKO
Moduļu skaits:: 24
IP aizsardzība:: IP54
Number of MCBs applied:: 4xC16/1, 2xC16/3, 2xC32/3
Papildu ierīces:: with RCD, rotary cam switch

Tehnisko datu katalogs

Produkts

Svars: 24,95 kg
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838400179685
Transport packaging weight: 25 kg
Transport Packaging Dimensions Height: 820 mm
Transport Packaging Dimensions Width: 680 mm
Transport Packaging Dimensions Depth: 520 mm
Transport packaging volume: 289,952 dm³
Pallet quantity: 1 pcs
Customs tariff: 85366990

Suitable according to IEC/EN 61439-4: Jā
Leakage current type: A
Main switch rated current: 63 A
Rated voltage: 230/400 V
Width: 672 mm
Model: Mobile end-distributor
Main switch: Power-cut-out switch
Degree of protection (IP): IP54
Number of earth leakage switches 30 mA: 1
Number of miniature circuit breakers (MCB): 8
Number of poles main switch: 3
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): 2
Housing material: Plastic
Depth: 518 mm
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE): 2
Rated current: 63 A
Number of socket outlets with protective contact CEE 7/3 (type F): 4
Height: 714 mm

ETIM klasifikācija – versija 9.0
