Our industrial plugs and sockets are designed for connecting electrical devices and consumers to low voltage power sources across a wide range of applications.

004483576

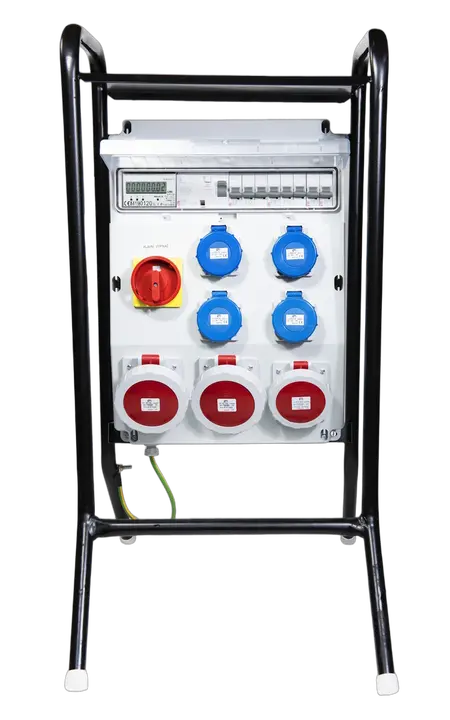

Attēls no EDS16S RCD 4S/3 32/16/VYP/E C

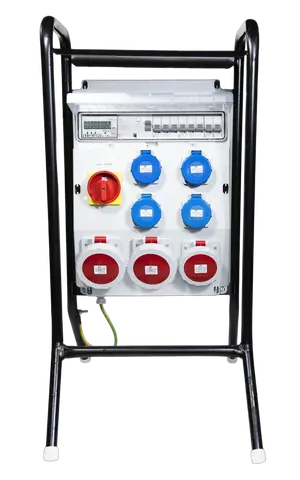

EDS16S RCD 4S/3 32/16/VYP/E C Sadalošais panelis

ETI kods:: 004483576
Polu skaits:: 3+N+PE
Nominālā strāva:: 63 A
Tips [ligzda/spraudnis]:: 2x32A(5p), 1x16A(5p), 4xSCHUKO
Moduļu skaits:: 16
IP aizsardzība:: IP65
Number of MCBs applied:: 2xC16/1, 1xC16/3, 1xC32/3
Papildu ierīces:: with RCD, rotary cam switch, energy counter

Tehnisko datu katalogs

Produkts

Svars: 11,95 kg
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838400179814
Transport packaging weight: 12 kg
Transport Packaging Dimensions Height: 820 mm
Transport Packaging Dimensions Width: 410 mm
Transport Packaging Dimensions Depth: 520 mm
Transport packaging volume: 174,824 dm³
Pallet quantity: 2 pcs
Customs tariff: 85366990

Suitable according to IEC/EN 61439-4: Jā
Leakage current type: A
Main switch rated current: 63 A
Rated voltage: 400 V
Width: 410 mm
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE): 2
Model: Mobile end-distributor
Main switch: Power-cut-out switch
Degree of protection (IP): IP65
Number of earth leakage switches 30 mA: 1
Number of meter panels: 1
Number of miniature circuit breakers (MCB): 4
Number of poles main switch: 3
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): 1
Housing material: Plastic
Depth: 520 mm
Rated current: 63 A
Number of socket outlets with protective contact CEE 7/3 (type F): 4
Height: 820 mm

ETIM klasifikācija – versija 9.0
