004482081

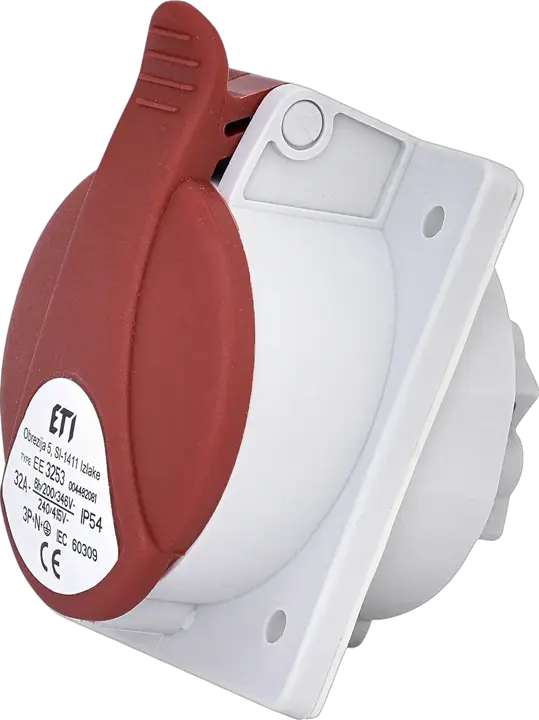

EE 3253 CEE ligzda

ETI kods:: 004482081
Funkcija:: Built-in wall socket IP54
Nominālais maiņstrāvas spriegums:: 400 V
Nominālais līdzstrāvas spriegums:: 400 V
Kataloga grupa 1:: Lizdai IP44
Nominālā strāva:: 32 A
Tips [ligzda/spraudnis]:: Built-in wall socket
Polu skaits:: 3+N+PE
IP aizsardzība:: IP44

Piederumi

Produkts

Svars: 0,209 kg
Net width: 80 mm
Net height: 109,3 mm
Net depth: 79,15 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895674757
Basic packaging weight: 0,21 kg
Basic packaging volume: 0,79 dm³

Transporta iepakojums

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838895674764
Transport packaging weight: 2,52 kg
Transport Packaging Dimensions Height: 220 mm
Transport Packaging Dimensions Width: 240 mm
Transport Packaging Dimensions Depth: 180 mm
Transport packaging volume: 9,504 dm³
Pallet quantity: 1 260 pcs
Customs tariff: 85366990

Degree of protection (IP): IP44
Voltage according to EN 60309-2: 400 V (50+60 Hz) red
Number of poles: 5
IEC-amperage: 32 A
Insert direction: Straight
Clock hour position: 6 h
Connection system: Screwed terminal
Identification colour: Red
Material: Plastic

ETIM klasifikācija – versija 9.0

Eplan

Programmatūra tiek nodrošināta tāda, kāda tā ir, bez jebkādām garantijām. Autors nav pienākumā sniegt atbalstu, servisu, labojumus vai jauninājumus bezmaksas programmatūrai vai draiberiem.

004482081 CEE ligzda EE 3253 ETICEE Industrial plug-in equipment IP44 series IP44 series Built-in sockets IP54 Built-in sockets IP54 Internacionāls Industriālās Kontaktdakšas, rozetes un Industriālās sadales EDS IP44, IP54-sērija Tips [ligzda/spraudnis]: Built-in wall socket Polu skaits: 3+N+PE IP aizsardzība: IP44 Nominālā strāva: 32 A/32 A CEE ligzda Tips [ligzda/spraudnis]: Built-in wall socket Nominālā strāva: 32 A/32 A Tips [ligzda/spraudnis]: Built-in wall socket Polu skaits: 3+N+PE IP aizsardzība: IP44 IP aizsardzība: IP44
