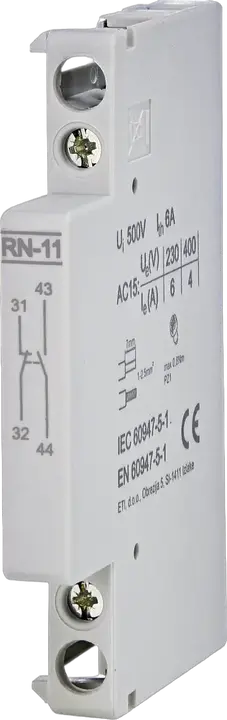

RN-11 Papildkontakti

ETI kods:: 002464070
Lai lietotu ar:: Modular contactor RD, R…R, RD…R
Funkcija:: Auxiliary contactor block
NO/NC kontaktu skaits:: 1
Montāžas veids:: DIN bėgelis
Kategorija:: Modular Contactors
Kataloga grupa 1:: ETICON
Funkcionālie piederumi:: Auxiliary contactor block for contactors RD, R…R, RD…R
I (AC1):: 6 A

Piederumi

Produkts

Svars: 30 g
Net width: 12,5 mm
Net height: 85 mm
Net depth: 64,5 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400074744
Basic packaging weight: 0,03 kg
Basic packaging volume: 0,1 dm³

Transporta iepakojums

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838895540977
Transport packaging weight: 0,03 kg
Transport Packaging Dimensions Height: 68 mm
Transport Packaging Dimensions Width: 18 mm
Transport Packaging Dimensions Depth: 87 mm
Transport packaging volume: 0,106 dm³
Pallet quantity: 18 000 pcs
Customs tariff: 85389099

Additional equipment possible: Jā
Voltage type: AC
Number of contacts as normally closed contact: 1
Device fitting: Auxiliary switch/relay
Suitable for max. number of poles main contact unit (total): 4
Utilization category according to EN IEC 60947-4-1: AC-1
Rated switch current: 6 A
Number of contacts as normally open contact: 1
Rated voltage: 230 V
Suitable for max. current main contact unit: 63 A
Function: Auxiliary switch
Width in number of modular spacings: 0,5

ETIM klasifikācija – versija 9.0
