Section rails, also known as busbars, play a crucial role in modern electrical installations, acting as the backbone for distributing power within panels and enclosures. They offer a safe, efficient, and organized way to connect multiple electrical devices.

Šis produkts ir novecojis, un tam nav tieša aizstājēja. Lūdzu, sazinieties ar mūsu tehnisko atbalstu, lai atrastu piemērotu aizstājēju.

002921064 Novecojis

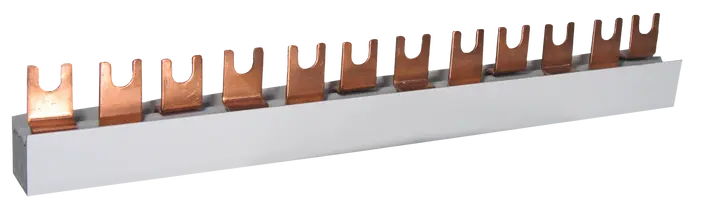

Attēls no * IZ16/3F/12/D

* IZ16/3F/12/D Izolēta kopne

ETI kods:: 002921064
Lai lietotu ar:: ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10
Kataloga grupa 1:: Izoliuotos sujungimo šynos IZ
Tips:: Fork Type
Polu skaits:: 3
Funkcija:: Section rails
Tips:: FORK
Fāžu skaits:: 3
Aksesuāru tips:: Section rails

Tehnisko datu katalogs

Produkts

Svars: 0,27 kg
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 20 pcs
EAN code for a basic packaging: 5907625307390
Basic packaging weight: 3,3 kg
Basic packaging volume: 2,8 dm³

Transporta iepakojums

Transport packaging quantity: 180 pcs
EAN code for a transport packaging: 5904723003773
Transport packaging weight: 30 kg
Transport packaging volume: 25 dm³
Customs tariff: 85389099

Cross section: 16 mm²
Number of phases: 3
Rated permanent current Iu: 100 A
Module width: 17,8 mm
Length: 210 mm
Insulated: Jā
Type of electric connection: Fork

ETIM klasifikācija – versija 9.0
