Section rails, also known as busbars, play a crucial role in modern electrical installations, acting as the backbone for distributing power within panels and enclosures. They offer a safe, efficient, and organized way to connect multiple electrical devices.

002921165

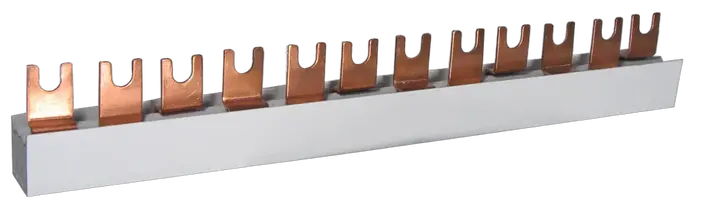

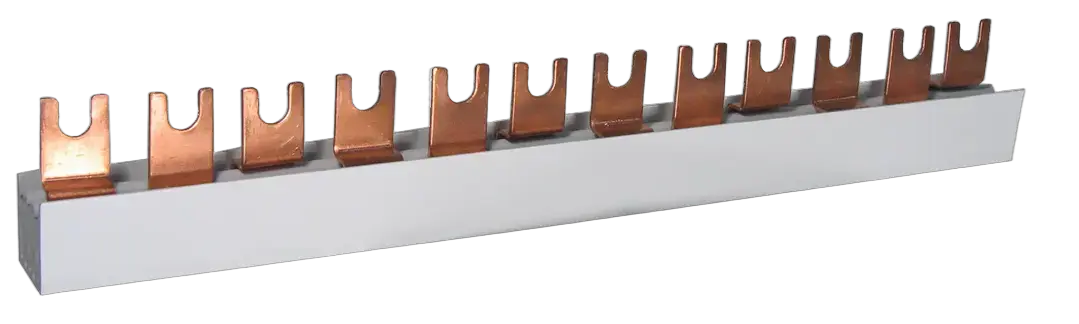

Attēls no IZ16/3F/12/STV/D

IZ16/3F/12/STV/D Izolēta kopne

ETI kods:: 002921165
Lai lietotu ar:: STVD02
Polu skaits:: 3
Funkcija:: Section rails
Fāžu skaits:: 3

Tehnisko datu katalogs

Produkts

Svars: 0,23 kg
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 20 pcs
EAN code for a basic packaging: 5904723004572
Basic packaging weight: 4,65 kg
Basic packaging volume: 2,8 dm³

Transporta iepakojums

Transport packaging quantity: 120 pcs
EAN code for a transport packaging: 5904723004589
Transport packaging weight: 27,9 kg
Transport packaging volume: 16,8 dm³
Pallet quantity: 3 600 pcs
Customs tariff: 85389099

Cross section: 16 mm²
Number of phases: 3
Rated permanent current Iu: 100 A
Module width: 27 mm
Length: 210 mm
Insulated: Jā
Type of electric connection: Fork

ETIM klasifikācija – versija 9.0
