Section rails, also known as busbars, play a crucial role in modern electrical installations, acting as the backbone for distributing power within panels and enclosures. They offer a safe, efficient, and organized way to connect multiple electrical devices.

002921176

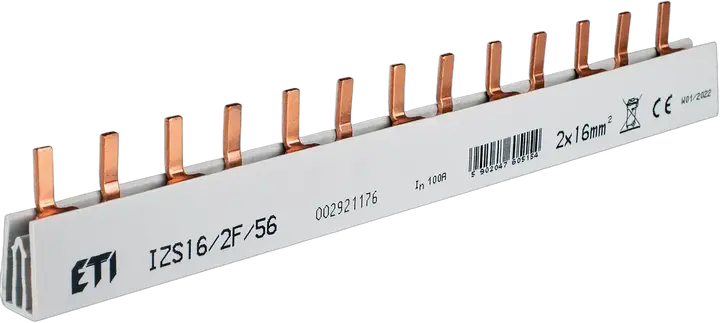

Attēls no IZS16/2F/56

IZS16/2F/56 Izolēta kopne

ETI kods:: 002921176
Lai lietotu ar:: EFI-2, KZS-2M
Tips:: PIN
Funkcija:: Section rails
Tips:: PIN
Nominālā strāva:: 100 A
Nominālais šķērsgriezums:: 16 mm²
Garums moduļos:: 1x56
Fāžu skaits:: 2
Nominālais maiņstrāvas spriegums:: 240/415 V
Aksesuāru tips:: Section rails

Tehnisko datu katalogs

Produkts

Svars: 0,52 kg
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 5902047605192
Transport packaging weight: 5,3 kg
Transport packaging volume: 10 dm³
Pallet quantity: 1 000 pcs
Customs tariff: 85389099

Cross section: 16 mm²
Number of phases: 2
Rated permanent current Iu: 100 A
Suitable for number of devices: 28
Module width: 17,8 mm
Number of poles: 56
Max. rated operation voltage Ue: 415 V
Insulated: Jā
Type of electric connection: Pin
Width in number of modular spacings: 56
