Section rails, also known as busbars, play a crucial role in modern electrical installations, acting as the backbone for distributing power within panels and enclosures. They offer a safe, efficient, and organized way to connect multiple electrical devices.

002921216

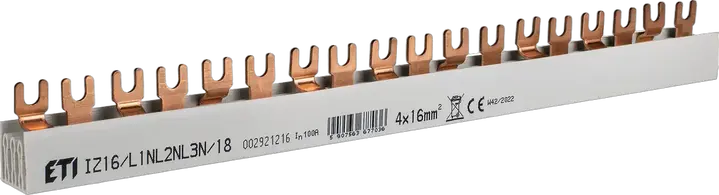

Attēls no IZ16/L1NL2NL3N/18

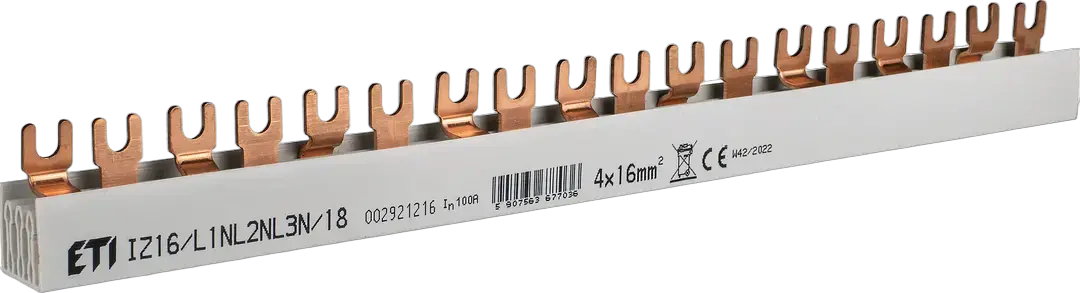

IZ16/L1NL2NL3N/18 Izolēta kopne

ETI kods:: 002921216
Lai lietotu ar:: ETIMAT 6, SV, ETIMAT 10
Tips:: Fork Type
Polu skaits:: 3+N
Funkcija:: Section rails
Tips:: FORK
Nominālā strāva:: 100 A
Nominālais šķērsgriezums:: 16 mm²
Garums moduļos:: 1x18
Fāžu skaits:: 4
Nominālais maiņstrāvas spriegums:: 500 V
Nominālais līdzstrāvas spriegums:: 500 V
Aksesuāru tips:: Section rails

Produkts

Svars: 0,293 kg
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 5907563676077
Basic packaging weight: 0,292 kg
Basic packaging volume: 0,254 dm³

Transporta iepakojums

Intermediate packaging quantity: 10 pcs
EAN code for a intermediate packaging: 5907563677036
Intermediate packaging weight: 2,92 kg
Transport packaging quantity: 120 pcs
EAN code for a transport packaging: 5907563670075
Transport packaging weight: 35,04 kg
Transport packaging volume: 30,48 dm³
Pallet quantity: 6 000 pcs
Customs tariff: 85389099

Cross section: 16 mm²
Number of phases: 4
Rated permanent current Iu: 100 A
Module width: 17,8 mm
Max. rated operation voltage Ue: 500 V
Insulated: Jā
Type of electric connection: Fork

ETIM klasifikācija – versija 9.0
