002173872

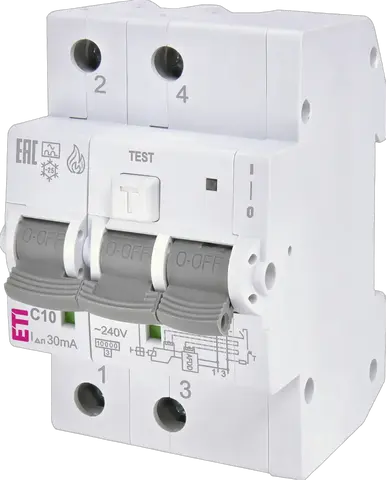

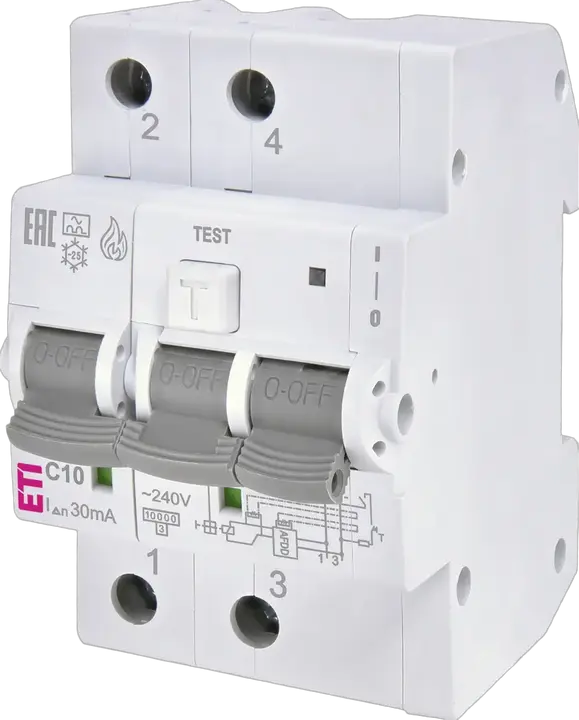

KZS-AFDD 3M2p A C10/0.03 Strāvas noplūdes automāts

ETI kods:: 002173872
Funkcija:: RCBO
Pārsprieguma aizsardzība:: Yes
Nominālais maiņstrāvas spriegums:: 240 V
Kataloga grupa 1:: KZS 3M2p AFDD
Bojājuma veida signalizācija:: LED
Pieteikums:: IEC/EN 61009-1, IEC/EN 62606
Savienojuma tips:: Universalus
Nominālā nosacītā īsslēguma strāva Inc (kA):: 10 kA
Nominālā atlikušā darba strāva IDn (mA):: 0,03 A
Nominālā strāva:: 10 A
Tips:: A
Nominālā atlikušā strāva:: 0,03 A
Izslēgšanas raksturlielums:: C
Polu skaits:: 2
Īsslēguma jauda:: 10 kA
Nominālais šķērsgriezums:: 1-25 mm²
Standarti:: IEC/EN 61009-1, IEC/EN 62606

Produkts

Svars: 377 g
Net width: 53,7 mm
Net height: 88,7 mm
Net depth: 73,31 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895869184
Basic packaging weight: 0,377 kg
Basic Packaging Dimensions Height: 0,08 m
Basic Packaging Dimensions Width: 0,095 m
Basic Packaging Dimensions Depth: 0,056 m
Basic packaging volume: 0 m³

Transporta iepakojums

Transport packaging quantity: 33 pcs
EAN code for a transport packaging: 3838895869207
Transport packaging weight: 12,791 kg
Transport Packaging Dimensions Height: 0,25 m
Transport Packaging Dimensions Width: 0,235 m
Transport Packaging Dimensions Depth: 0,295 m
Transport packaging volume: 0,017 m³
Pallet quantity: 1 716 pcs
Customs tariff: 85362010

Built-in depth: 69 mm
Leakage current type: A
Rated impulse withstand voltage Uimp: 4 kV
Degree of protection (IP): IP20
Release characteristic: C
Rated fault current: 0,03 A
Number of poles (total): 2
Frequency: 50 Hz
Rated short-circuit breaking capacity according to EN 61009: 10 kA
Number of protected poles: 2
Rated voltage: 230 V
Current limiting class: 3
Rated current: 10 A
Width in number of modular spacings: 3
Ambient temperature during operating(Min): -25 °C
Connectable conductor cross section solid-core(Min): 1 mm²
Connectable conductor cross section multi-wired(Min): 1 mm²
Connectable conductor cross section solid-core(Max): 25 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Ambient temperature during operating(Max): 40 °C

ETIM klasifikācija – versija 9.0
