Residual Current Circuit Breakers (RCCBs) are crucial electrical safety devices that provide protection against electrical shocks and fires. They enhance safety for humans and animals, contributing to a higher level of fire safety. The use of RCCBs is highly recommended in areas with an increased risk of electrical shocks, such as bathrooms, humid and wet rooms, children's rooms, and workshops.

002061261

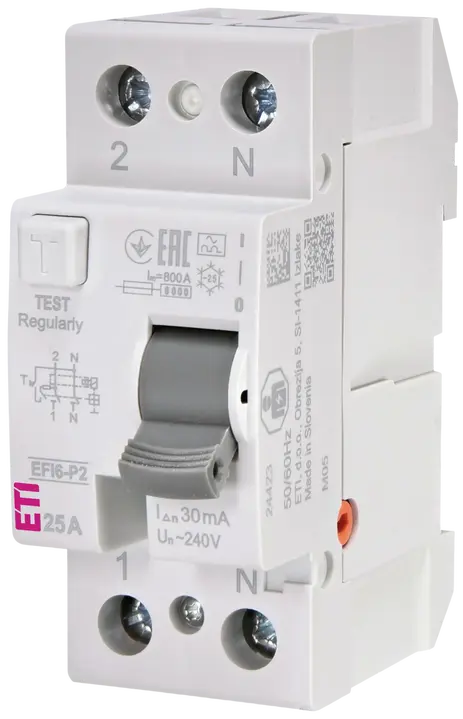

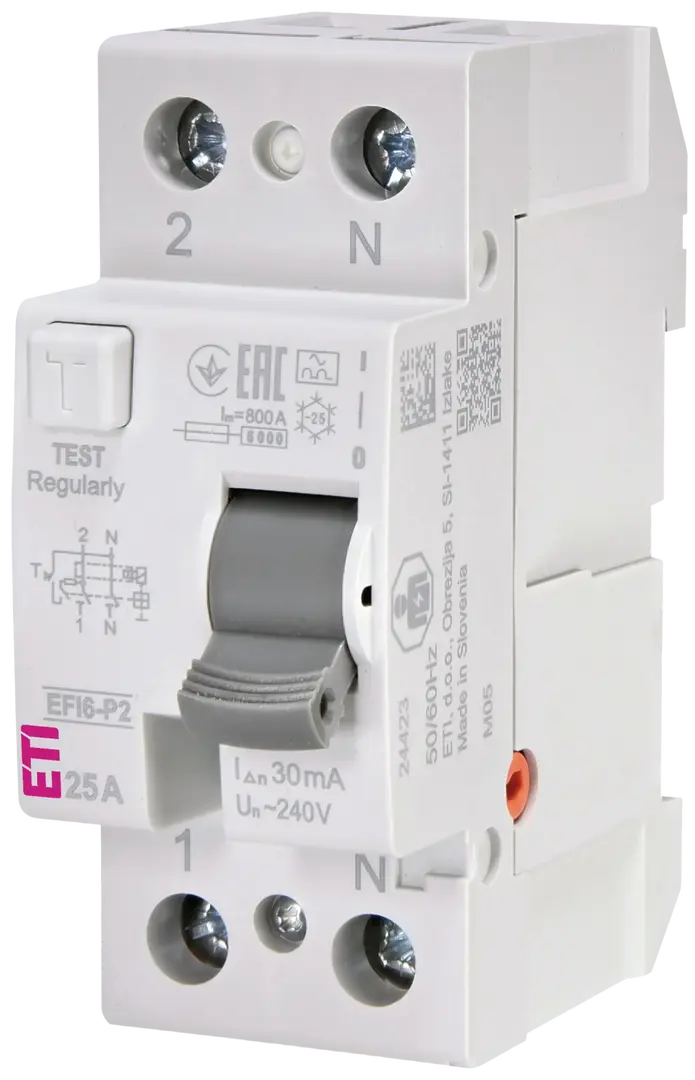

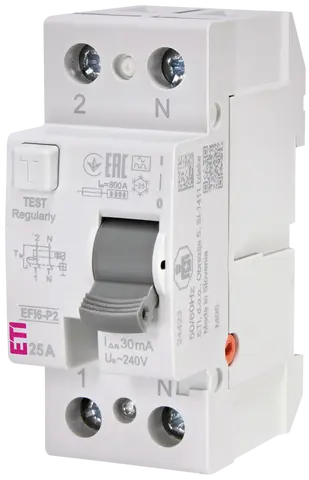

Attēls no EFI6-P2 A 25/0.03

EFI6-P2 A 25/0.03 RCCB direncālis

ETI kods:: 002061261
Pieteikums:: IEC 61008-1
Nominālā atlikušā darba strāva IDn (mA):: 0,03 A
Nominālā atlikušā strāva:: 0,03 A
Tips:: A
Nominālā strāva:: 25 A
Dziļums:: 70 mm
Montāžas veids:: TH 35
Polu skaits:: 1+N
Nominālā nosacītā īsslēguma strāva Inc (kA):: 6 kA
Izslēgšanas laiks:: Neuždelstas
Nominālais maiņstrāvas spriegums:: 240 V
Nominālā frekvence (Hz):: 50/60 Hz
Nominālais šķērsgriezums:: 1-25 mm²
Standarti:: IEC 61008-1
IP aizsardzība:: IP20

Produkts

Svars: 0,164 kg
Net width: 35,9 mm
Net height: 88,7 mm
Net depth: 72,35 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895910756
Basic packaging weight: 0,187 kg
Basic packaging volume: 0,27 dm³

Transporta iepakojums

Transport packaging quantity: 54 pcs
EAN code for a transport packaging: 3838895910763
Transport packaging weight: 10,398 kg
Transport packaging volume: 17,4 dm³
Pallet quantity: 2 808 pcs
Customs tariff: 85362010

Additional equipment possible: Jā
Rated insulation voltage Ui: 440 V
Built-in depth: 70 mm
Leakage current type: A
Surge current capacity: 0,4 kA
Rated impulse withstand voltage Uimp: 4 kV
Degree of protection (IP): IP20
Mounting method: DIN rail
Rated fault current: 0,03 A
Frequency: 50/60 Hz
Number of poles: 2
Short-circuit breaking capacity (Icw): 6 kA
Rated voltage: 240 V
Rated current: 25 A
Width in number of modular spacings: 2
Ambient temperature during operating(Min): -30 °C
Connectable conductor cross section solid-core(Min): 1 mm²
Connectable conductor cross section multi-wired(Min): 1 mm²
Connectable conductor cross section solid-core(Max): 25 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Ambient temperature during operating(Max): 40 °C

ETIM klasifikācija – versija 9.0
