002159505 Novecojis

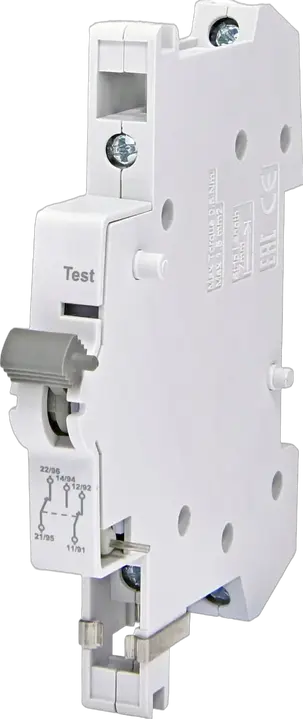

*PS/SS ETIMAT P10 Papild/signāla kontakti

ETI kods:: 002159505
Funkcionālie piederumi:: Auxiliary switch
Pieteikums:: EN 62019
Funkcija:: Auxiliary switch
Nominālā frekvence (Hz):: 50/60 Hz
Nominālais šķērsgriezums:: 1-25 mm²
NO/NC kontaktu skaits:: 1
NO kontaktu skaits:: 1
Standarti:: EN 62019
Lai lietotu ar:: ETIMAT P10

Piederumi

Produkts

Svars: 35 g
Net width: 13,5 mm
Net height: 88 mm
Net depth: 72,39 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895839866
Basic packaging weight: 0,043 kg
Basic Packaging Dimensions Height: 75 mm
Basic Packaging Dimensions Width: 91 mm
Basic Packaging Dimensions Depth: 20 mm
Basic packaging volume: 0,136 dm³

Transporta iepakojums

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838895839873
Transport packaging weight: 0,586 kg
Transport Packaging Dimensions Height: 0,081 m
Transport Packaging Dimensions Width: 0,123 m
Transport Packaging Dimensions Depth: 0,216 m
Transport packaging volume: 0,002 m³
Pallet quantity: 2 880 pcs
Customs tariff: 85365080

Number of fault-signal switches: 1
Voltage type: AC/DC
Number of contacts as normally closed contact: 1
Device fitting: Miniature circuit breaker (MCB)
Suitable for max. number of poles main contact unit (total): 4
Rated switch current: 6 A
Rated voltage: 230 V
Suitable for max. current main contact unit: 63 A
Function: Auxiliary switch
Number of contacts as change-over contact: 1

ETIM klasifikācija – versija 9.0
