001903088

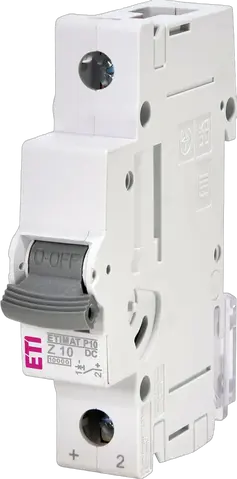

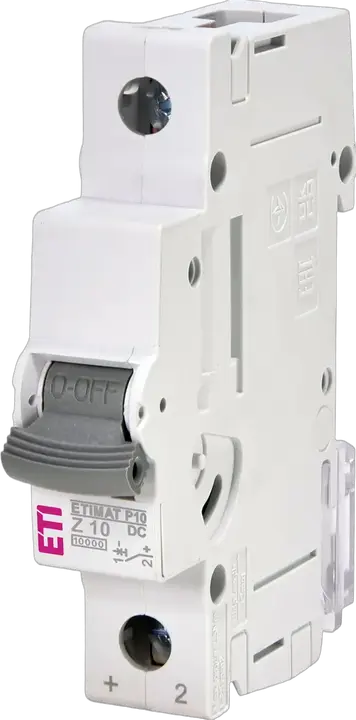

ETIMAT P10-DC 1p Z10 Automātiskais slēdzis

ETI kods:: 001903088
Pieteikums:: 60898-2
Nominālā strāva:: 10 A
Izslēgšanas raksturlielums:: Z
Polu skaits:: 1
Īsslēguma jauda:: 10 kA
Sprieguma veids:: DC
Nominālais impulsa izturības spriegums Uimp (kV):: 6 kV
Nominālais maiņstrāvas spriegums:: 220 V
Nominālā frekvence (Hz):: 1/25 Hz
Nominālais šķērsgriezums:: 1-25 mm²
Standarti:: 60898-2
Funkcija:: MCB

Piederumi

Produkts

EAN code for a single product: 3838895961918
Svars: 0,124 kg
Net width: 17,8 mm
Net height: 89 mm
Net depth: 74,74 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 12 pcs
EAN code for a basic packaging: 3838895961925
Basic packaging weight: 1,544 kg
Basic Packaging Dimensions Height: 79 mm
Basic Packaging Dimensions Width: 91 mm
Basic Packaging Dimensions Depth: 220 mm
Basic packaging volume: 1,582 dm³

Transporta iepakojums

Transport packaging quantity: 108 pcs
EAN code for a transport packaging: 3838895961932
Transport packaging weight: 14,249 kg
Transport Packaging Dimensions Height: 0,25 m
Transport Packaging Dimensions Width: 0,235 m
Transport Packaging Dimensions Depth: 0,295 m
Transport packaging volume: 0,017 m³
Pallet quantity: 5 616 pcs
Customs tariff: 85362010

Additional equipment possible: Jā
Rated insulation voltage Ui: 500 V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: 10 kA
Built-in depth: 70 mm
Voltage type: DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 10 kA
Rated impulse withstand voltage Uimp: 6 kV
Degree of protection (IP): IP20
Release characteristic: Z
Over voltage category: 3
Number of poles (total): 1
Pollution degree: 2
Concurrently switching neutral conductor: Jā
Number of protected poles: 1
Rated voltage: 220 V
Current limiting class: 3
Rated current: 10 A
Flush-mounted installation: Jā
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 10 kA
Width in number of modular spacings: 1
Frequency(Min): 1 Hz
Ambient temperature during operating(Min): -40 °C
Connectable conductor cross section solid-core(Min): 1 mm²
Connectable conductor cross section multi-wired(Min): 1 mm²
Connectable conductor cross section solid-core(Max): 25 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Frequency(Max): 25
Ambient temperature during operating(Max): 70 °C

ETIM klasifikācija – versija 9.0
