002113518

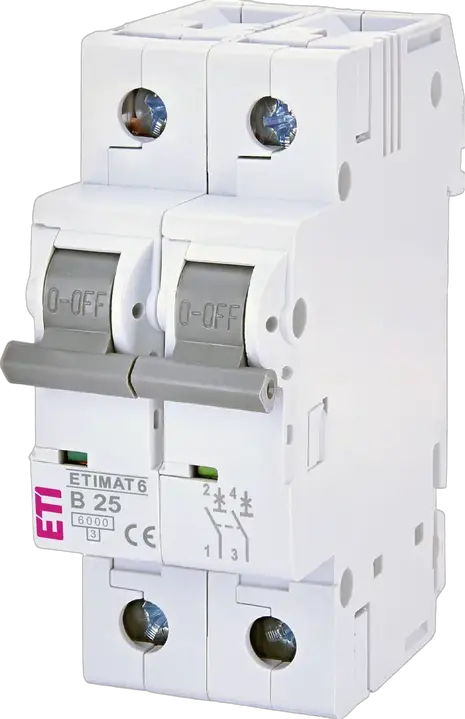

ETIMAT 6 2p B25 Automātiskais slēdzis

ETI kods:: 002113518
Kataloga grupa 1:: ETIMAT 6 automatinis jungiklis 6kA
Pieteikums:: IEC/EN 60898-1, IEC 60947-2
Nominālā strāva:: 25 A
Izslēgšanas raksturlielums:: B
Polu skaits:: 2
Īsslēguma jauda:: 6 kA
Sprieguma veids:: AC
Nominālais impulsa izturības spriegums Uimp (kV):: 6 kV
Nominālais maiņstrāvas spriegums:: 400 V
Nominālā frekvence (Hz):: 50/60 Hz
Nominālais šķērsgriezums:: 1-25 mm²
Standarti:: IEC/EN 60898-1, IEC 60947-2
Funkcija:: MCB

Piederumi

Produkts

EAN code for a single product: 3838895257882
Svars: 0,211 kg
Net width: 35,2 mm
Net height: 85,4 mm
Net depth: 72,63 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 6 pcs
EAN code for a basic packaging: 3838895282136
Basic packaging weight: 1,616 kg
Basic Packaging Dimensions Height: 0,077 m
Basic Packaging Dimensions Width: 0,09 m
Basic Packaging Dimensions Depth: 0,221 m
Basic packaging volume: 0,002 m³

Transporta iepakojums

Transport packaging quantity: 54 pcs
EAN code for a transport packaging: 3838895282143
Transport packaging weight: 14,897 kg
Transport Packaging Dimensions Height: 0,25 m
Transport Packaging Dimensions Width: 0,235 m
Transport Packaging Dimensions Depth: 0,295 m
Transport packaging volume: 0,017 m³
Pallet quantity: 2 808 pcs
Customs tariff: 85362010

Additional equipment possible: Jā
Rated insulation voltage Ui: 500 V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: 6 kA
Built-in depth: 68 mm
Voltage type: AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 6 kA
Rated impulse withstand voltage Uimp: 4 kV
Degree of protection (IP): IP20
Release characteristic: B
Over voltage category: 3
Number of poles (total): 2
Pollution degree: 3
Number of protected poles: 2
Rated voltage: 400 V
Current limiting class: 3
Rated current: 25 A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 6 kA
Width in number of modular spacings: 2
Frequency(Min): 50 Hz
Ambient temperature during operating(Min): -25 °C
Connectable conductor cross section solid-core(Min): 1 mm²
Connectable conductor cross section multi-wired(Min): 1 mm²
Connectable conductor cross section solid-core(Max): 25 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Frequency(Max): 60
Ambient temperature during operating(Max): 55 °C

ETIM klasifikācija – versija 9.0
