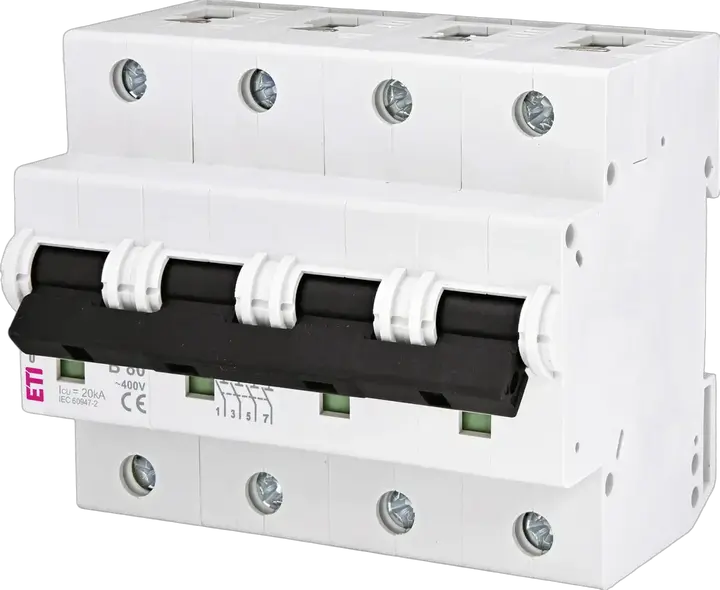

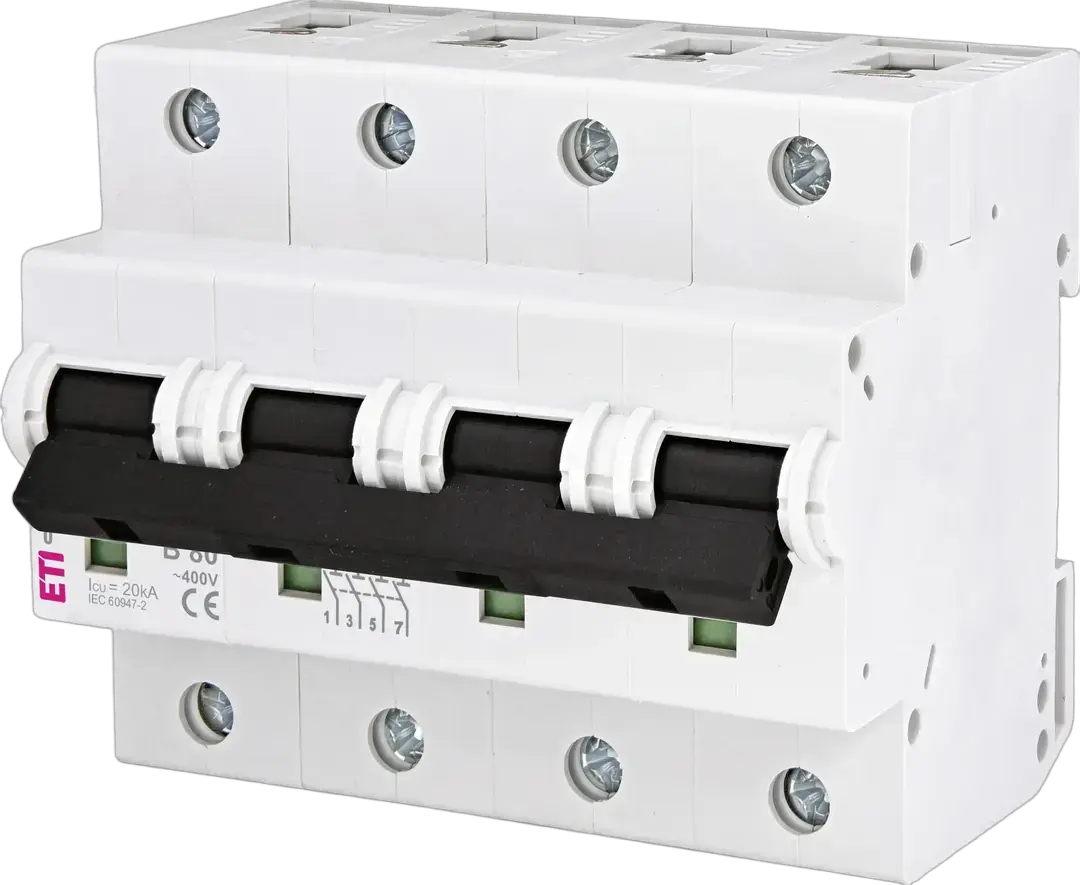

ETIMAT 10 4p B80 Automātiskais slēdzis

ETI kods:: 002127731
Pieteikums:: IEC/EN 60898-1, IEC 60947-2
Nominālā strāva:: 80 A
Izslēgšanas raksturlielums:: B
Polu skaits:: 4
Īsslēguma jauda:: 20 kA
Sprieguma veids:: AC
Nominālais impulsa izturības spriegums Uimp (kV):: 4 kV
Nominālais maiņstrāvas spriegums:: 415 V
Nominālā frekvence (Hz):: 50/60 Hz
Nominālais šķērsgriezums:: 2.5-50 mm²
Standarti:: IEC/EN 60898-1, IEC 60947-2
Funkcija:: MCB

Piederumi

Produkts

Svars: 0,861 kg
Net width: 108 mm
Net height: 90,8 mm
Net depth: 76,58 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895811398
Basic packaging weight: 1,023 kg
Basic Packaging Dimensions Height: 0,084 m
Basic Packaging Dimensions Width: 0,093 m
Basic Packaging Dimensions Depth: 0,145 m
Basic packaging volume: 0,001 m³

Transporta iepakojums

Transport packaging quantity: 14 pcs
EAN code for a transport packaging: 3838895811404
Transport packaging weight: 14,672 kg
Transport Packaging Dimensions Height: 0,25 m
Transport Packaging Dimensions Width: 0,235 m
Transport Packaging Dimensions Depth: 0,295 m
Transport packaging volume: 0,017 m³
Pallet quantity: 728 pcs
Customs tariff: 85362090

Additional equipment possible: Jā
Rated insulation voltage Ui: 440 V
Built-in depth: 75 mm
Voltage type: AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 20 kA
Rated impulse withstand voltage Uimp: 4 kV
Degree of protection (IP): IP20
Release characteristic: B
Over voltage category: 3
Number of poles (total): 4
Pollution degree: 3
Number of protected poles: 4
Rated voltage: 415 V
Current limiting class: 3
Rated current: 80 A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 10 kA
Width in number of modular spacings: 6
Frequency(Min): 50 Hz
Ambient temperature during operating(Min): -25 °C
Connectable conductor cross section solid-core(Min): 2,5 mm²
Connectable conductor cross section multi-wired(Min): 2,5 mm²
Connectable conductor cross section solid-core(Max): 50 mm²
Connectable conductor cross section multi-wired(Max): 50 mm²
Frequency(Max): 60
Ambient temperature during operating(Max): 55 °C

ETIM klasifikācija – versija 9.0
