002191123

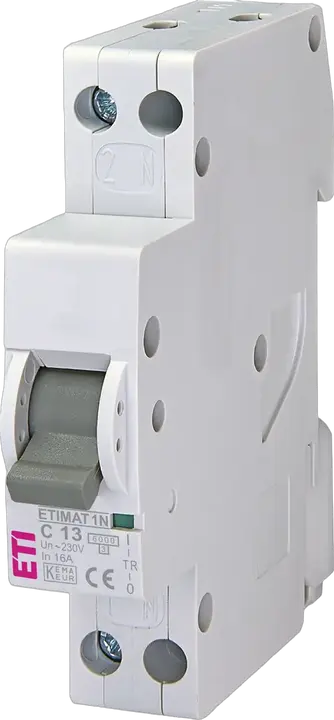

ETIMAT 1N 1p+N C13 6kA Automātiskais slēdzis

ETI kods:: 002191123
Kataloga grupa 1:: ETIMAT 1N Miniatūrie automātiskie slēdži 2 polu
Pieteikums:: IEC/EN 60898-1
Nominālā strāva:: 13 A
Izslēgšanas raksturlielums:: C
Polu skaits:: 1+N
Īsslēguma jauda:: 6 kA
Sprieguma veids:: AC
Nominālais impulsa izturības spriegums Uimp (kV):: 4 kV
Nominālais maiņstrāvas spriegums:: 230 V
Nominālā frekvence (Hz):: 50/60 Hz
Nominālais šķērsgriezums:: 1-10 mm²
Standarti:: IEC/EN 60898-1
Funkcija:: MCB

Piederumi

Produkts

EAN code for a single product: 3838895474845
Svars: 0,1 kg
Net width: 17,9 mm
Net height: 88,2 mm
Net depth: 73,97 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 12 pcs
EAN code for a basic packaging: 3838895474852
Basic packaging weight: 1,256 kg
Basic Packaging Dimensions Height: 0,077 m
Basic Packaging Dimensions Width: 0,09 m
Basic Packaging Dimensions Depth: 0,221 m
Basic packaging volume: 0,002 m³

Transporta iepakojums

Transport packaging quantity: 108 pcs
EAN code for a transport packaging: 3838895474869
Transport packaging weight: 11,657 kg
Transport Packaging Dimensions Height: 0,25 m
Transport Packaging Dimensions Width: 0,235 m
Transport Packaging Dimensions Depth: 0,295 m
Transport packaging volume: 0,017 m³
Pallet quantity: 5 616 pcs
Customs tariff: 85362010

Built-in depth: 68 mm
Voltage type: AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 6 kA
Rated impulse withstand voltage Uimp: 4 kV
Degree of protection (IP): IP20
Release characteristic: C
Number of poles (total): 2
Concurrently switching neutral conductor: Jā
Number of protected poles: 1
Rated voltage: 230 V
Current limiting class: 3
Rated current: 13 A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 6 kA
Width in number of modular spacings: 1
Frequency(Min): 50 Hz
Connectable conductor cross section solid-core(Min): 1 mm²
Connectable conductor cross section multi-wired(Min): 1 mm²
Connectable conductor cross section solid-core(Max): 10 mm²
Connectable conductor cross section multi-wired(Max): 10 mm²
Frequency(Max): 50

ETIM klasifikācija – versija 9.0
