An MCB is a type of switch that automatically trips and disconnects a circuit if it detects abnormal electrical conditions, such as excessive current flow. Unlike traditional fuses that melt and need replacing after a fault, MCBs can be reset, making them a more practical and economical solution for ongoing protection.

725031105

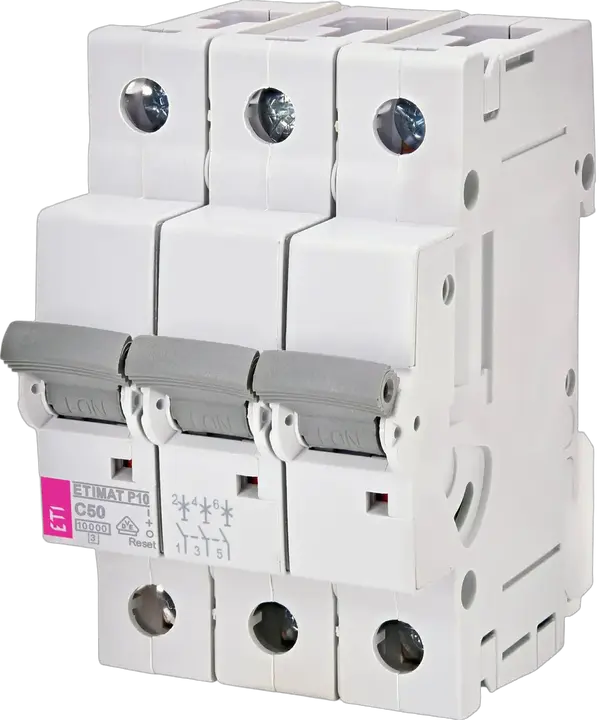

Attēls no ETIMAT P10/R 3p C50

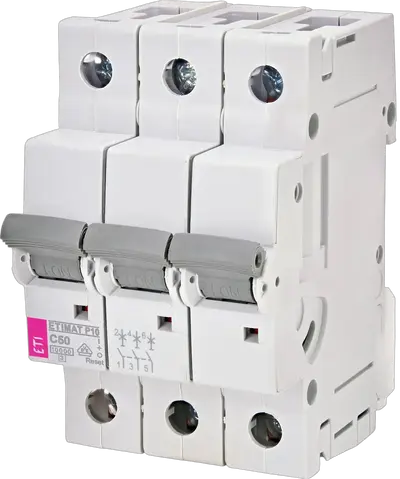

ETIMAT P10/R 3p C50 Automātiskais slēdzis

ETI kods:: 725031105
Dziļums:: 69,5 mm
Kataloga grupa 1:: ETIMAT P10 automatinis jungiklis 10kA
Pārsprieguma kategorija:: III
Pieteikums:: IEC/EN 60898-1, IEC 60947-2
IP aizsardzība:: IP20
Nominālā strāva:: 50 A
Izslēgšanas raksturlielums:: C
Polu skaits:: 3
Īsslēguma jauda:: 10 kA
Sprieguma veids:: AC
Nominālais impulsa izturības spriegums Uimp (kV):: 6 kV
Nominālais maiņstrāvas spriegums:: 400 V
Nominālā frekvence (Hz):: 50/60 Hz
Nominālais šķērsgriezums:: 1-25 mm²
Standarti:: IEC/EN 60898-1, IEC 60947-2
Funkcija:: MCB

Produkts

EAN code for a single product: 3838895799825
Svars: 360 g
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 4 pcs
EAN code for a basic packaging: 3838895799832
Basic packaging weight: 1,57 kg
Basic Packaging Dimensions Height: 0,081 m
Basic Packaging Dimensions Width: 0,222 m
Basic Packaging Dimensions Depth: 0,103 m
Basic packaging volume: 0,002 m³

Transporta iepakojums

Transport packaging quantity: 20 pcs
EAN code for a transport packaging: 3838895799849
Transport packaging weight: 8,05 kg
Transport Packaging Dimensions Height: 0,091 m
Transport Packaging Dimensions Width: 0,531 m
Transport Packaging Dimensions Depth: 0,233 m
Transport packaging volume: 0,011 m³
Pallet quantity: 1 680 pcs
Customs tariff: 85362010
