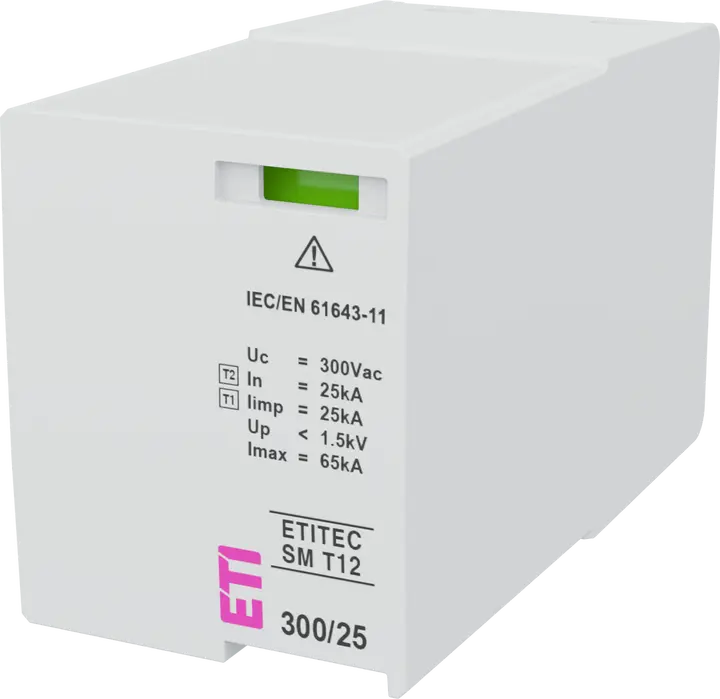

Attēls no MOD. ETITEC SM T12 300/25

MOD. ETITEC SM T12 300/25 Pārsprieguma ierobežotājs

ETI kods:: 002440575
Nominālais maiņstrāvas spriegums:: 230 V
Tīkla sistēma:: TN/TT
Kataloga grupa 1:: ETITEC SM
Uzstādīšana:: Home and residental building protection
IP aizsardzība:: IP20
Noplūdes strāva:: No
Pietlietotā tehnoloģija:: MOV, GDT
Iebūvētais dziļums (mm):: 73,5 mm
Tips:: T1, T2
AC max continous operating voltage Uc:: 300 V
Funkcija:: SPD Module
Lai lietotu ar:: ETITEC SM T12 3+0, 3+1, 4+0
Pašreizējais veids:: AC
Iimp(10/350) Impulsu strāva [kA]:: 25 kA
In (8/20):: 25 kA
Imax(8/20) [kA]:: 65 kA

Piederumi

Produkts

Svars: 0,13 kg
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895847595
Basic packaging weight: 0,172 kg
Basic Packaging Dimensions Height: 91 mm
Basic Packaging Dimensions Width: 41 mm
Basic Packaging Dimensions Depth: 48 mm
Basic packaging volume: 0,179 dm³

Transporta iepakojums

Transport packaging quantity: 9 pcs
EAN code for a transport packaging: 3838895847601
Transport packaging weight: 1,629 kg
Transport Packaging Dimensions Height: 109 mm
Transport Packaging Dimensions Width: 352 mm
Transport Packaging Dimensions Depth: 115 mm
Transport packaging volume: 4,412 dm³
Pallet quantity: 2 034 pcs
Customs tariff: 85363090

System configuration TN-C: Jā
Nominal voltage AC: 230 V
Test class: Type 1 + 2
Degree of protection (IP): IP20
Mounting method: On basic element
Construction size: 2 modular spacing
Lightning impulse current (10/350 µs): 25 kA
Specific energy (W/R): 156,2 kJ/Ohm
System configuration TN-S: Jā
Voltage protection level: 1,5 kV
System configuration TN: Jā
Number of poles: 1
System configuration TT: Jā
Signalling at the device: Optical
Max. continuous voltage AC: 300 V

ETIM klasifikācija – versija 9.0

002440575 Pārsprieguma ierobežotājs MOD. ETITEC SM T12 300/25 ETITEC Surge arresters Leakage free - DIN rail ETITEC SM T12 ETITEC SM T12 ETITEC SM T12 Internacionāls Pārsprieguma novadītāji AC surge arresters Accessories Pārsprieguma ierobežotājs TOWAR

Piederumi 6 Visi piederumi

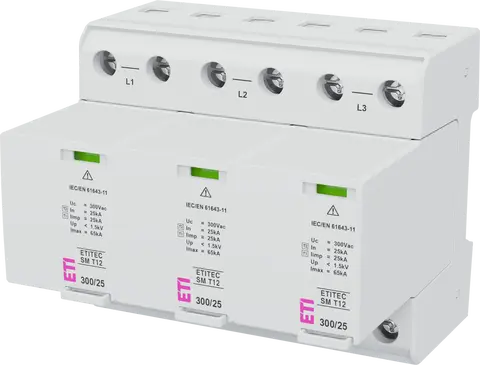

ETITEC SM T12 300/25 3+0

002440560

ETITEC SM T12 300/25 3+0

ETITEC SM T12 300/25 3+0 RC

002440561

ETITEC SM T12 300/25 3+0 RC

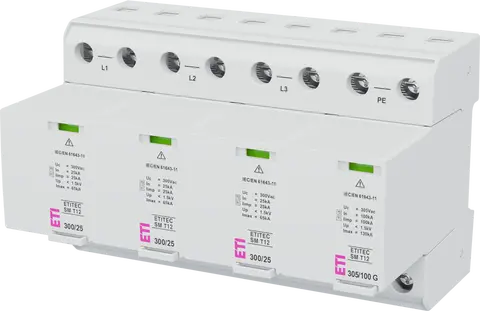

ETITEC SM T12 300/25 3+1
