002440435

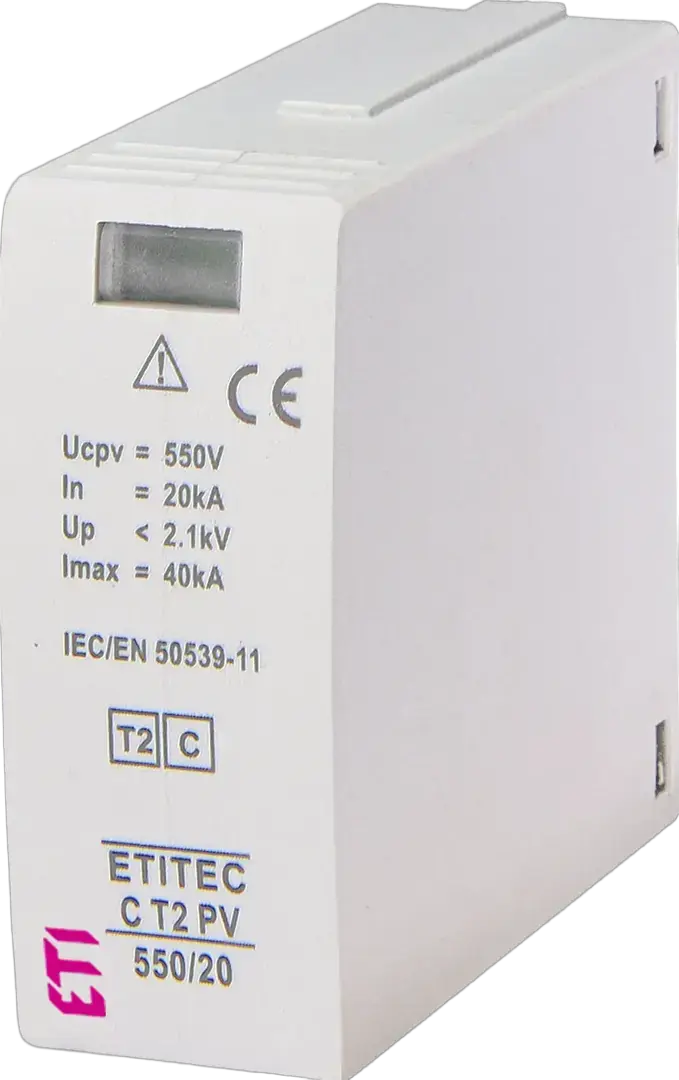

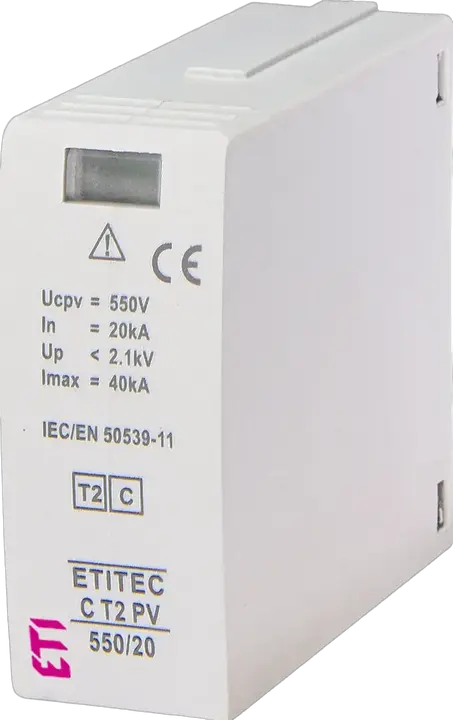

Attēls no *MOD.ETITEC C T2 PV 550/20

*MOD.ETITEC C T2 PV 550/20 Pārsprieguma ierobežotājs

ETI kods:: 002440435
Funkcija:: SPD Module
Kataloga grupa 1:: ETITEC C PV
Uzstādīšana:: PV protection
IP aizsardzība:: IP20
Noplūdes strāva:: Yes
Pietlietotā tehnoloģija:: MOV
Tips:: T2
DC max continous operating voltage Uc:: 550 V
Lai lietotu ar:: ETITEC C T2 PV
Pašreizējais veids:: DC
In (8/20):: 20 kA

Produkts

EAN code for a single product: 3838400166647
Svars: 0,058 kg
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838895784586
Transport packaging weight: 0,064 kg
Transport Packaging Dimensions Height: 62 mm
Transport Packaging Dimensions Width: 47 mm
Transport Packaging Dimensions Depth: 219 mm
Transport packaging volume: 0,638 dm³
Pallet quantity: 15 120 pcs
Customs tariff: 85363090

Max. discharge surge current (8/20): 40 kA
Max. continuous voltage DC: 550 V
Degree of protection (IP): IP20
Mounting method: On basic element
Construction size: 1 modular spacing
Short-circuit breaking capacity (Isccr): 0,1 kA
Signalling at the device: Optical
Category type 2: Jā
Nominal discharge surge current (8/20): 20 kA
System configuration DC: Jā

ETIM klasifikācija – versija 9.0
