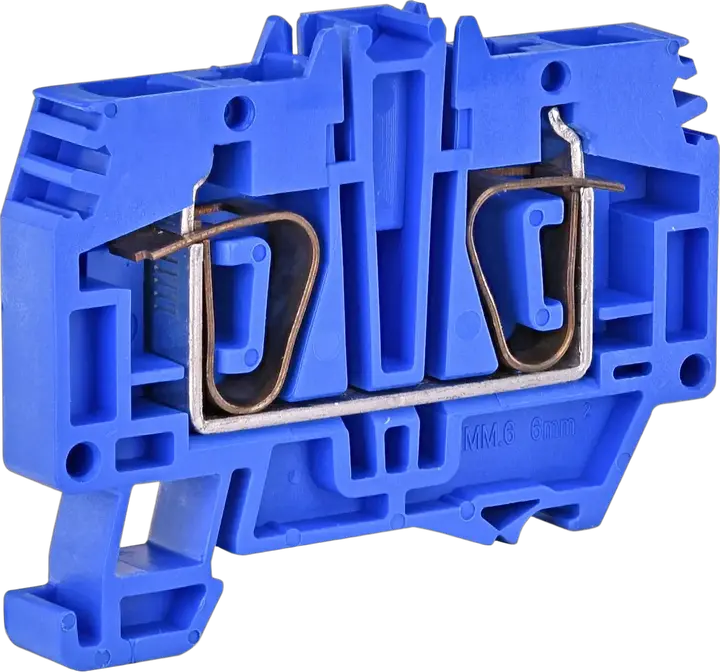

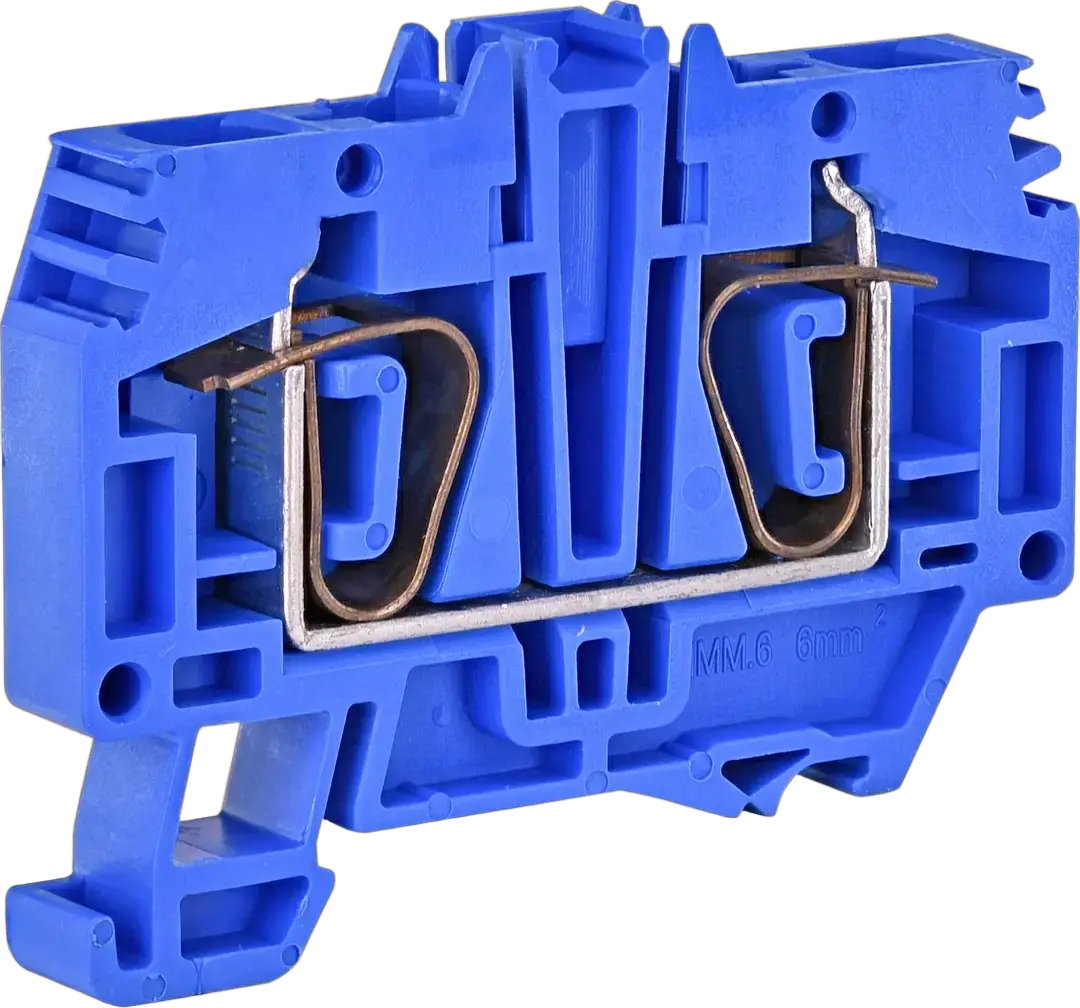

ESP-HMM.6B Nulles klemme

ETI kods:: 003903169
Nominālais maiņstrāvas spriegums:: 800 V
Nominālais līdzstrāvas spriegums:: 800 V
Kataloga grupa 1:: ES spyruokliniai laidų gnybtai
Montāžas veids:: TH 35
Tips:: ES Spring Clamp Terminal Blocks
Līmenis:: Viengubas
Krāsa:: Mėlynas
Nominālais šķērsgriezums:: 6 mm²
Nominālais impulsa izturības spriegums Uimp (kV):: 8 kV
Maksimālā strāva ar nominālo šķērsgriezumu (mm2):: 41 mm²
Savienojams vadītāja šķērsgriezums - ciets kodols (mm2):: 2-10 mm²
Šķērssavienojums:: Yes
Nepieciešama beigu sadaļa:: Yes

Piederumi

Produkts

EAN code for a single product: 3838895862369
Svars: 19 g
Net width: 8,2 mm
Net height: 62 mm
Net depth: 47,5 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 30 pcs
EAN code for a transport packaging: 3838895789635
Transport packaging weight: 0,609 kg
Transport Packaging Dimensions Height: 85 mm
Transport Packaging Dimensions Width: 160 mm
Transport Packaging Dimensions Depth: 100 mm
Transport packaging volume: 1,36 dm³
Pallet quantity: 19 800 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Jā
Width: 8,2 mm
Material insulation body: Thermoplastic
Rated current In: 41 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 2
Closing plate required: Jā
Type of electrical connection 2: Spring clamp connection
Rated voltage: 800 V
Colour: Blue
Height: 44 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 10 mm²
Connectable conductor cross section multi-wired(Max): 10 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 6 mm²

ETIM klasifikācija – versija 9.0
