ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901130

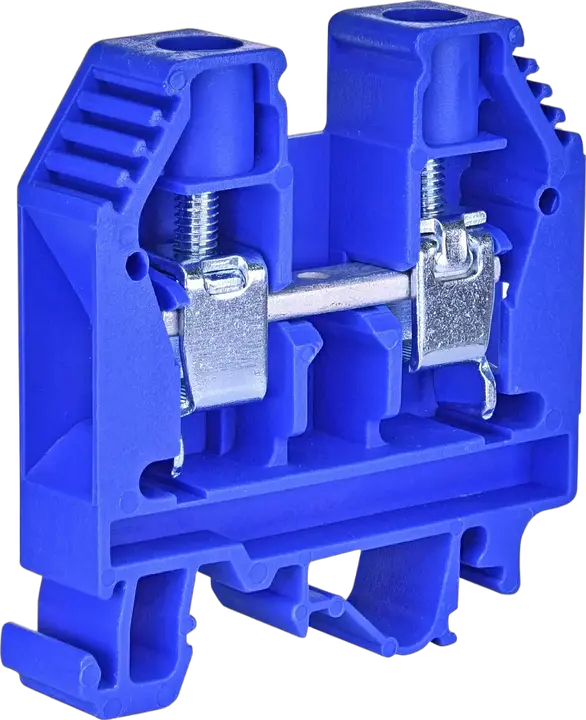

Attēls no VS 16 PA N

VS 16 PA N Montāžas skavas

ETI kods:: 003901130
Nominālais maiņstrāvas spriegums:: 660 V
Nominālais līdzstrāvas spriegums:: 660 V
Kataloga grupa 1:: SM Line-up gnybtai
Montāžas veids:: TH 35
Tips:: SM Line-up terminals
Līmenis:: Viengubas
Krāsa:: Mėlynas
Nominālais šķērsgriezums:: 16 mm²
Maksimālā strāva ar nominālo šķērsgriezumu (mm2):: 76 mm²
Šķērssavienojums:: Yes
Nepieciešama beigu sadaļa:: Yes
Funkcija:: Line-up terminal VS

Produkts

EAN code for a single product: 3838400081315
Svars: 0,029 kg
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3831012324108
Transport packaging weight: 1,444 kg
Transport packaging volume: 2,16 dm³
Pallet quantity: 27 700 pcs
Customs tariff: 85369010

Width: 12 mm
Material insulation body: Thermoplastic
Rated current In: 76 A
Mounting method: DIN rail (top hat rail) 35 mm
Type of electrical connection 1: Clip connection
Closing plate required: Jā
Rated voltage: 660 V
Colour: Blue
Height: 56 mm
Connectable conductor cross section solid-core(Min): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 6 mm²
Connectable conductor cross section solid-core(Max): 16 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 16 mm²

ETIM klasifikācija – versija 9.0
