ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901650

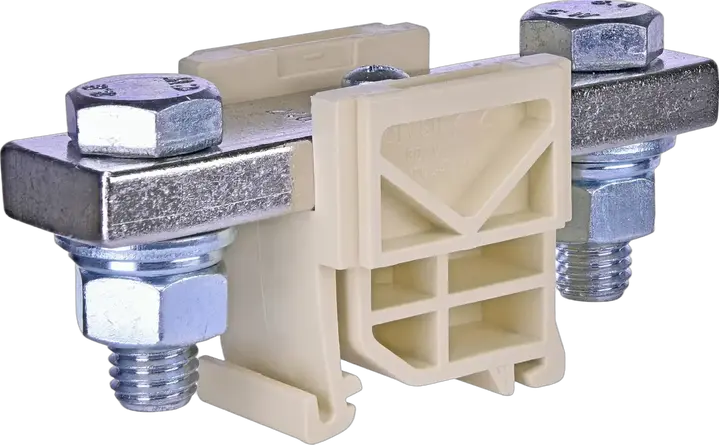

Attēls no VSU 240

VSU 240 Montāžas skavas

ETI kods:: 003901650
Nominālais maiņstrāvas spriegums:: 1000 V
Nominālais līdzstrāvas spriegums:: 1000 V
Kataloga grupa 1:: SM Line-up gnybtai
Montāžas veids:: TH 35
Tips:: SM Line-up terminals
Līmenis:: Viengubas
Krāsa:: Šviesiai rudas
Nominālais šķērsgriezums:: 240 mm²
Maksimālā strāva ar nominālo šķērsgriezumu (mm2):: 415 mm²
Savienojams vadītāja šķērsgriezums - ciets kodols (mm2):: 240 mm²
Šķērssavienojums:: Yes
Nepieciešama beigu sadaļa:: No
Funkcija:: High current line-up terminal VSU

Produkts

EAN code for a single product: 3838400082954
Svars: 0,385 kg
Net width: 42 mm
Net height: 45 mm
Net depth: 88 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 8 pcs
EAN code for a transport packaging: 3831012300348
Transport packaging weight: 3,082 kg
Transport packaging volume: 2,36 dm³
Pallet quantity: 2 080 pcs
Customs tariff: 85369010

Width: 42 mm
Material insulation body: Thermoplastic
Rated current In: 415 A
Mounting method: DIN rail (top hat rail) 35 mm
Type of electrical connection 1: Screw connection
Rated voltage: 1 000 V
Colour: Beige
Height: 48 mm
Connectable conductor cross section solid-core(Min): 2,5 mm²
Connectable conductor cross section solid-core(Max): 240 mm²

ETIM klasifikācija – versija 9.0
