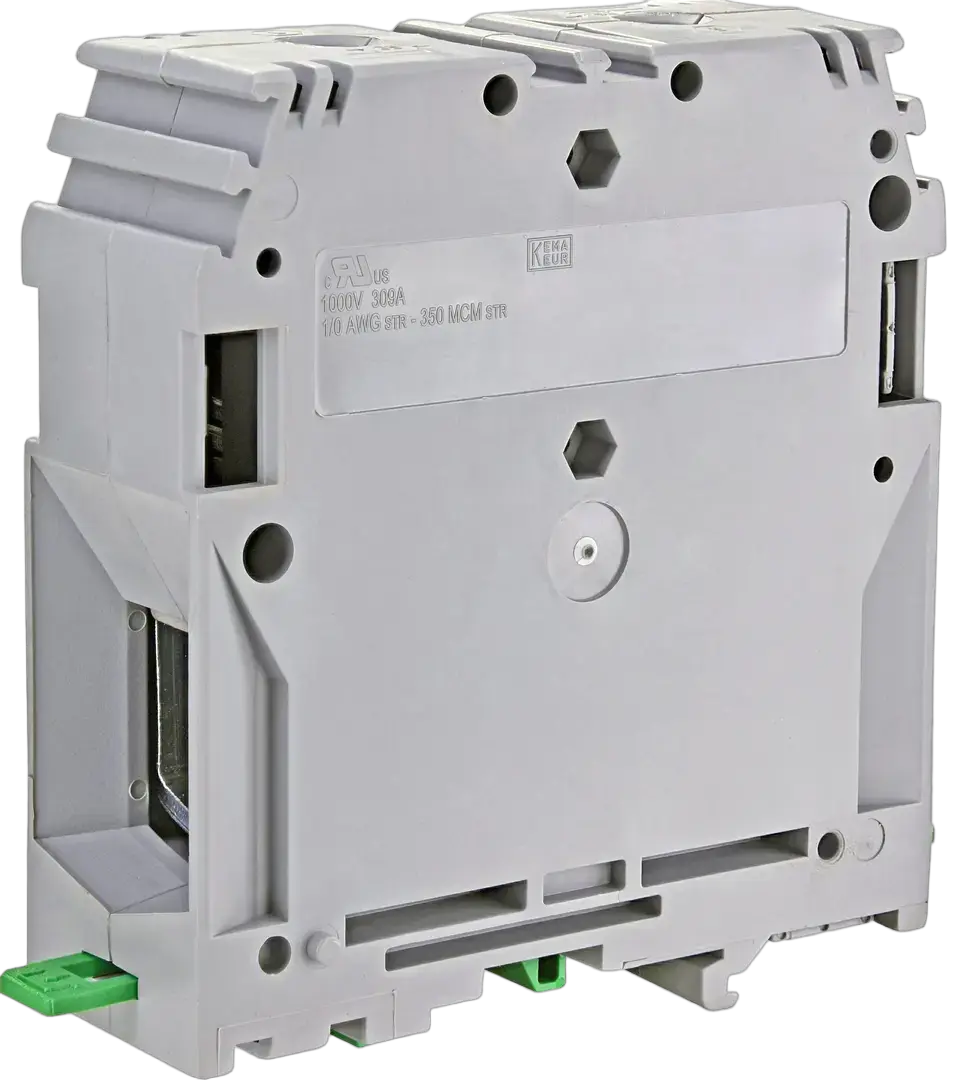

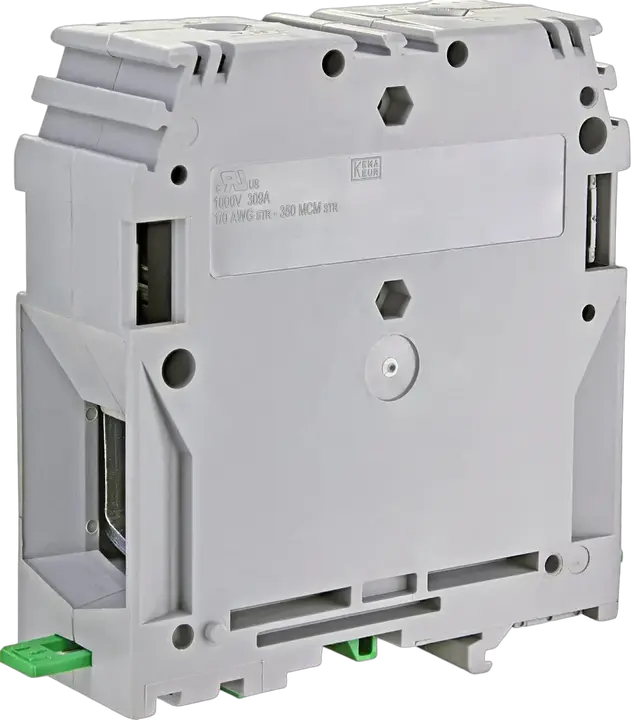

ESC-GPA.150 Montāžas skavas

ETI kods:: 003903008
Nominālais maiņstrāvas spriegums:: 1000 V
Nominālais līdzstrāvas spriegums:: 1000 V
Kataloga grupa 1:: ES varžtiniai laidų gnybtai
Montāžas veids:: TH 35
Tips:: ES Screw Type Terminal Blocks
Līmenis:: Viengubas
Krāsa:: Pilkas
Nominālais šķērsgriezums:: 150 mm²
Nominālais impulsa izturības spriegums Uimp (kV):: 12 kV
Maksimālā strāva ar nominālo šķērsgriezumu (mm2):: 309 mm²
Savienojams vadītāja šķērsgriezums - ciets kodols (mm2):: 50-185 mm²
Šķērssavienojums:: No
Nepieciešama beigu sadaļa:: No

Piederumi

Produkts

EAN code for a single product: 3838895859697
Svars: 356,5 g
Net width: 35 mm
Net height: 108 mm
Net depth: 98,54 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 8 pcs
EAN code for a transport packaging: 3838895787983
Transport packaging weight: 2,856 kg
Transport Packaging Dimensions Height: 115 mm
Transport Packaging Dimensions Width: 245 mm
Transport Packaging Dimensions Depth: 155 mm
Transport packaging volume: 4,367 dm³
Pallet quantity: 1 344 pcs
Customs tariff: 85369010

Width: 31 mm
Material insulation body: Thermoplastic
Rated current In: 309 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Type of electrical connection 2: Screw connection
Rated voltage: 1 000 V
Colour: Grey
Height: 99 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 50 mm²
Connectable conductor cross section multi-wired(Min): 50 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 50 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 50 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 185 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 150 mm²
Connectable conductor cross section multi-wired(Max): 185 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 150 mm²

ETIM klasifikācija – versija 9.0
