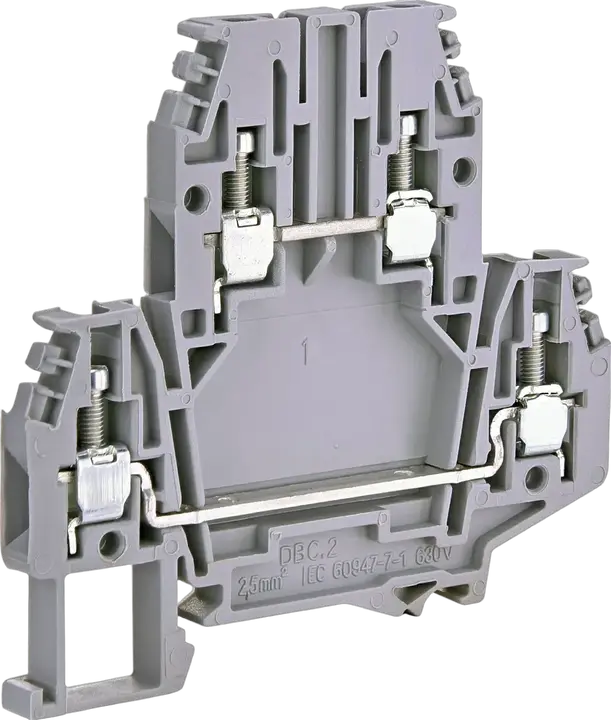

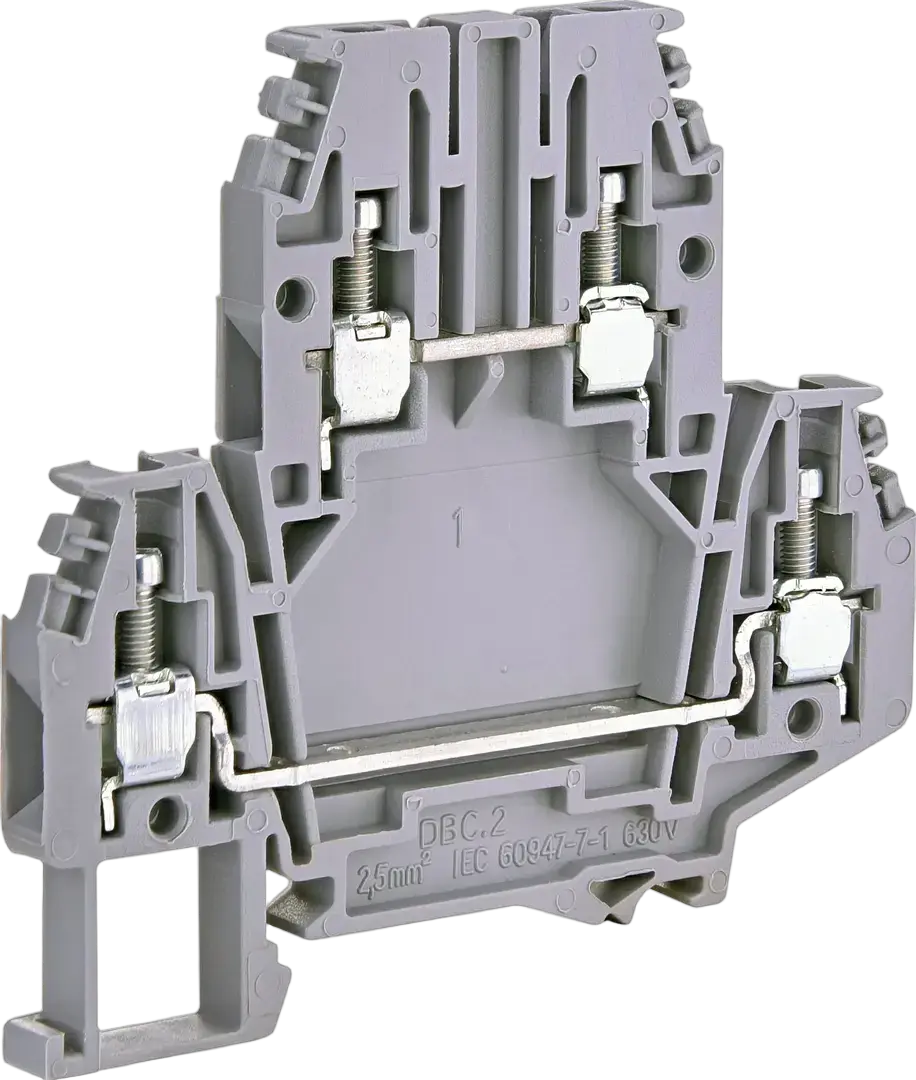

ESC2-DBC.2 Montāžas skavas

ETI kods:: 003903053
Nominālais maiņstrāvas spriegums:: 630 V
Nominālais līdzstrāvas spriegums:: 630 V
Kataloga grupa 1:: ES varžtiniai laidų gnybtai
Montāžas veids:: TH 35
Tips:: ES Screw Type Terminal Blocks
Līmenis:: Dvigubas
Krāsa:: Pilkas
Nominālais šķērsgriezums:: 2.5 mm²
Nominālais impulsa izturības spriegums Uimp (kV):: 8 kV
Maksimālā strāva ar nominālo šķērsgriezumu (mm2):: 24 mm²
Savienojams vadītāja šķērsgriezums - ciets kodols (mm2):: 0.2-4 mm²
Šķērssavienojums:: Yes
Nepieciešama beigu sadaļa:: Yes

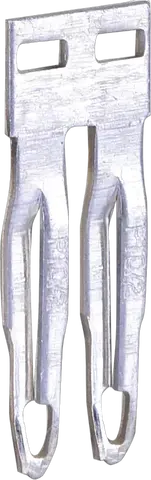

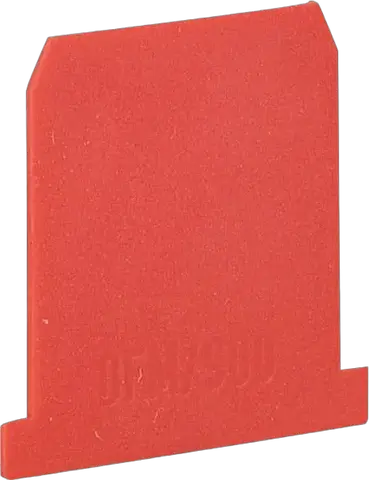

Piederumi

Produkts

EAN code for a single product: 3838895861003
Svars: 16,33 g
Net width: 5 mm
Net height: 70 mm
Net depth: 65 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 120 pcs
EAN code for a transport packaging: 3838895788492
Transport packaging weight: 1,94 kg
Transport Packaging Dimensions Height: 75 mm
Transport Packaging Dimensions Width: 260 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 2,925 dm³
Pallet quantity: 37 080 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Jā
Width: 5 mm
Material insulation body: Thermoplastic
Rated current In: 27 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 2
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2

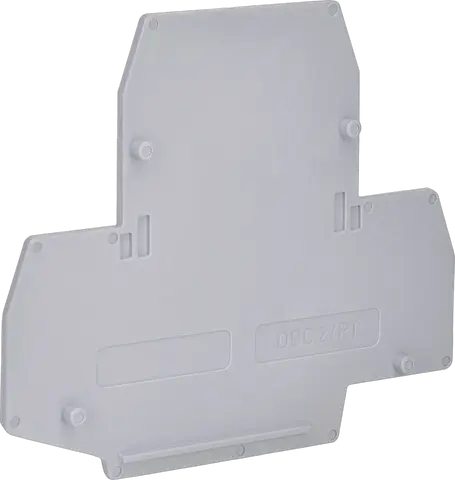

Closing plate required: Jā
Type of electrical connection 2: Screw connection
Rated voltage: 630 V
Colour: Grey
Height: 66 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²
Connectable conductor cross section multi-wired(Max): 4 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 2,5 mm²

ETIM klasifikācija – versija 9.0
