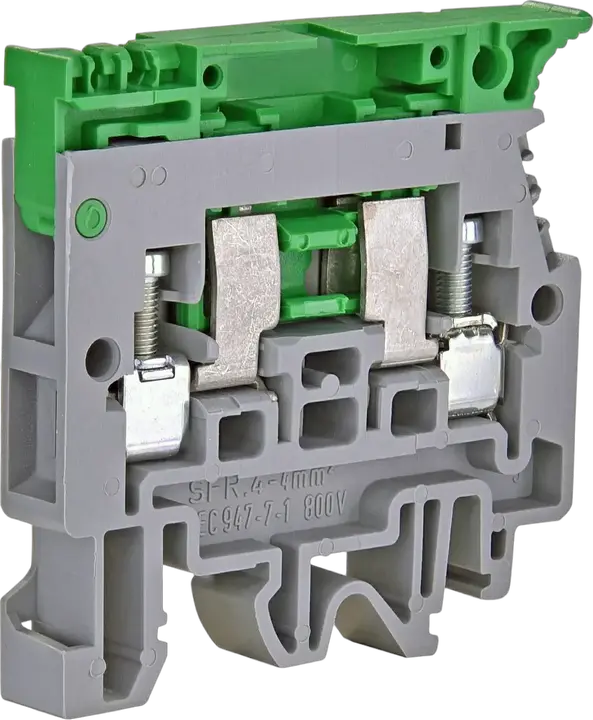

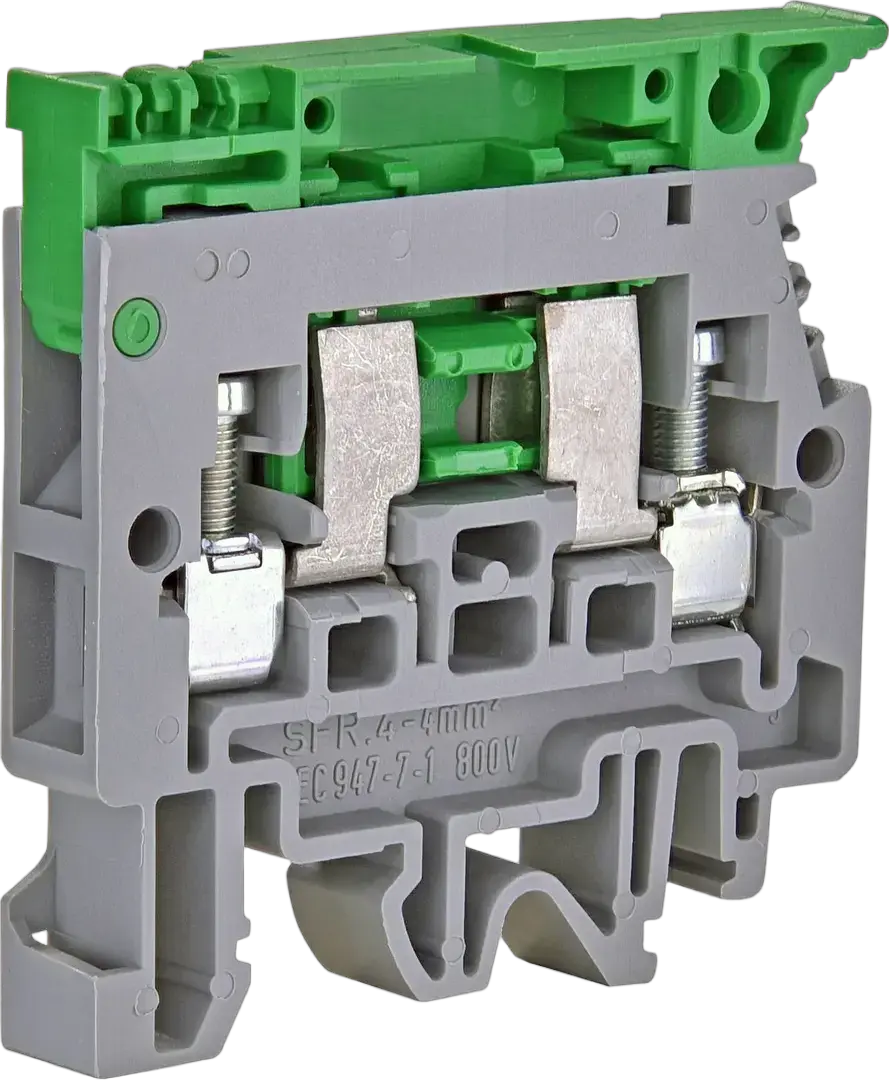

ESC-SFR.4 Drošinātāju turētājs

ETI kods:: 003903057
Nominālais maiņstrāvas spriegums:: 600 V
Nominālais līdzstrāvas spriegums:: 800 V
Kataloga grupa 1:: ES varžtiniai laidų gnybtai
Montāžas veids:: TH 35
Tips:: ES Screw Type Terminal Blocks
Krāsa:: Pilkas
Nominālais šķērsgriezums:: 4 mm²
Nominālais impulsa izturības spriegums Uimp (kV):: 6 kV
Savienojams vadītāja šķērsgriezums - ciets kodols (mm2):: 2-6 mm²
Šķērssavienojums:: Yes
Nepieciešama beigu sadaļa:: Yes

Piederumi

Produkts

EAN code for a single product: 3838895861041
Svars: 16 g
Net width: 8 mm
Net height: 52,5 mm
Net depth: 51 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 70 pcs
EAN code for a transport packaging: 3838895788539
Transport packaging weight: 1,191 kg
Transport Packaging Dimensions Height: 55 mm
Transport Packaging Dimensions Width: 240 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1,98 dm³
Pallet quantity: 31 500 pcs
Customs tariff: 85369010

Type of component: Diode
Width: 8 mm
Material insulation body: Thermoplastic
Rated current In: 1 A
Mounting method: DIN rail (top hat rail)/G-rail TH35/G32
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Closing plate required: Jā
Type of electrical connection 2: Screw connection
Rated voltage: 800 V
Colour: Grey
Height: 52 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 6 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 6 mm²
Connectable conductor cross section multi-wired(Max): 6 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 4 mm²

ETIM klasifikācija – versija 9.0
