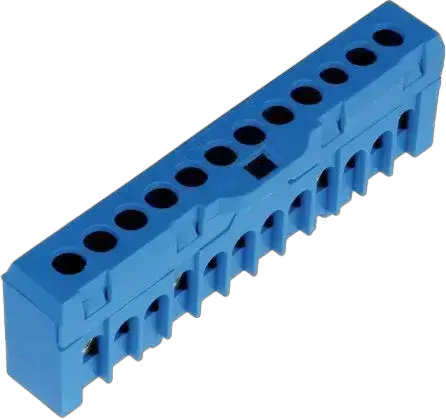

ESC-QBLOK1201 Sadales bloks

ETI kods:: 003903206
Nominālais maiņstrāvas spriegums:: 500 V
Nominālais līdzstrāvas spriegums:: 500 V
Kataloga grupa 1:: ES varžtiniai laidų gnybtai
Montāžas veids:: TH 35
Tips:: ES Screw Type Terminal Blocks
Līmenis:: Viengubas
Krāsa:: Mėlynas
Nominālais šķērsgriezums:: 10 mm²
Maksimālā strāva ar nominālo šķērsgriezumu (mm2):: 63 mm²
Maksimālā strāva ar maksimālo šķērsgriezumu (mm2):: 63 mm²
Savienojams vadītāja šķērsgriezums - ciets kodols (mm2):: 16 mm²
Šķērssavienojums:: No
Nepieciešama beigu sadaļa:: No
Funkcija:: Equipotential distribution terminal boards

Produkts

EAN code for a single product: 3838895862796
Svars: 0,028 kg
Net width: 85,1 mm
Net height: 31,9 mm
Net depth: 15,5 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895797715
Transport packaging weight: 0,497 kg
Transport Packaging Dimensions Height: 40 mm
Transport Packaging Dimensions Width: 134 mm
Transport Packaging Dimensions Depth: 116 mm
Transport packaging volume: 0,622 dm³
Pallet quantity: 12 080 pcs
Customs tariff: 85369010

Width: 16 mm
Material insulation body: Thermoplastic
Rated current In: 63 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Type of electrical connection 2: Screw connection
Rated voltage: 500 V
Colour: Blue
Height: 33 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 1,5 mm²
Connectable conductor cross section multi-wired(Min): 1,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 1,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 1,5 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 16 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 10 mm²
Connectable conductor cross section multi-wired(Max): 10 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 10 mm²

ETIM klasifikācija – versija 9.0
