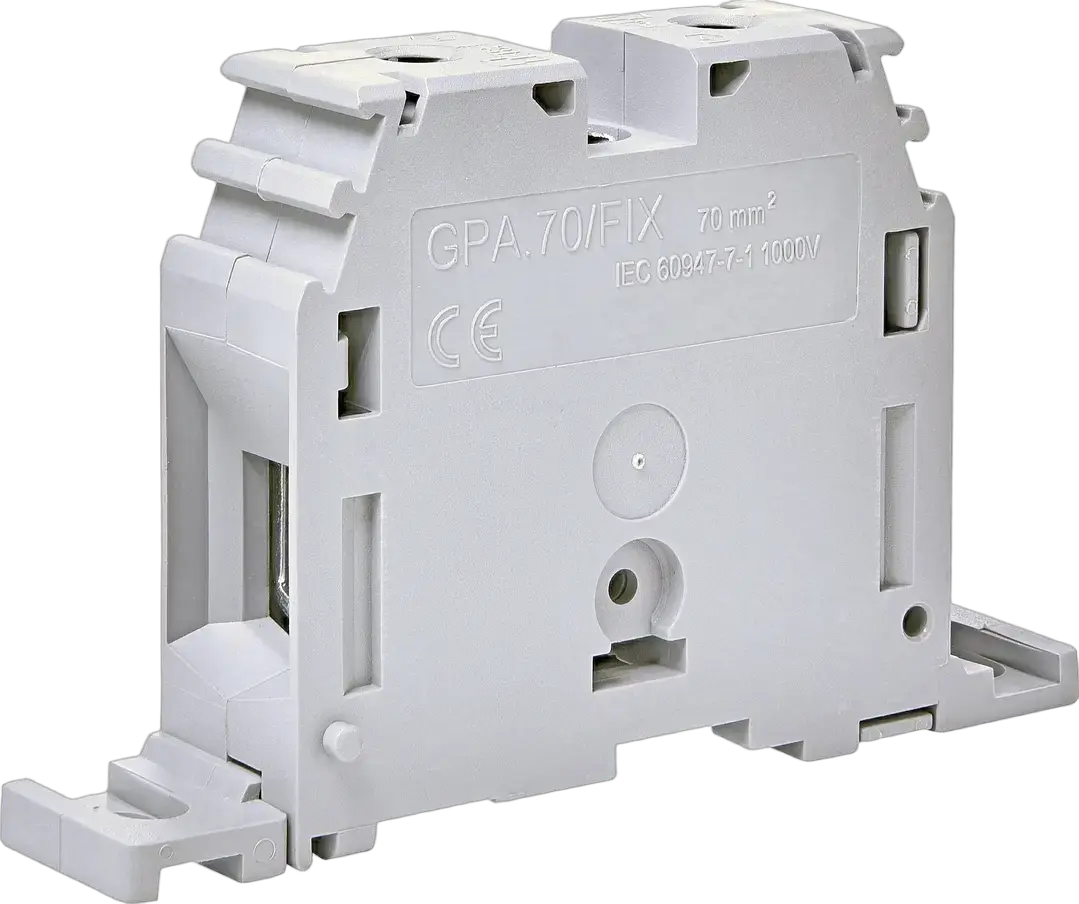

ESC-GPA.70/FIX Montāžas skavas

ETI kods:: 003903211
Nominālais maiņstrāvas spriegums:: 600 V
Nominālais līdzstrāvas spriegums:: 600 V
Kataloga grupa 1:: ES varžtiniai laidų gnybtai
Montāžas veids:: Base plate mounting
Tips:: ES Screw Type Terminal Blocks
Līmenis:: Viengubas
Krāsa:: Pilkas
Nominālais šķērsgriezums:: 70 mm²
Nominālais impulsa izturības spriegums Uimp (kV):: 12 kV
Maksimālā strāva ar nominālo šķērsgriezumu (mm2):: 192 mm²
Šķērssavienojums:: No
Nepieciešama beigu sadaļa:: No

Piederumi

Produkts

EAN code for a single product: 3838895859710
Svars: 0,114 kg
Net width: 24,5 mm
Net height: 102 mm
Net depth: 65,2 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 25 pcs
EAN code for a transport packaging: 3838895830597
Transport packaging weight: 2,975 kg
Transport Packaging Dimensions Height: 75 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 210 mm
Transport packaging volume: 4,568 dm³
Pallet quantity: 3 900 pcs
Customs tariff: 85369010

Width: 20,5 mm
Material insulation body: Thermoplastic
Rated current In: 192 A
Mounting method: Direct mounting
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Type of electrical connection 2: Screw connection
Rated voltage: 1 000 V
Colour: Grey
Height: 75 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 10 mm²
Connectable conductor cross section multi-wired(Min): 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 10 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 95 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 95 mm²
Connectable conductor cross section multi-wired(Max): 95 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 70 mm²

ETIM klasifikācija – versija 9.0
