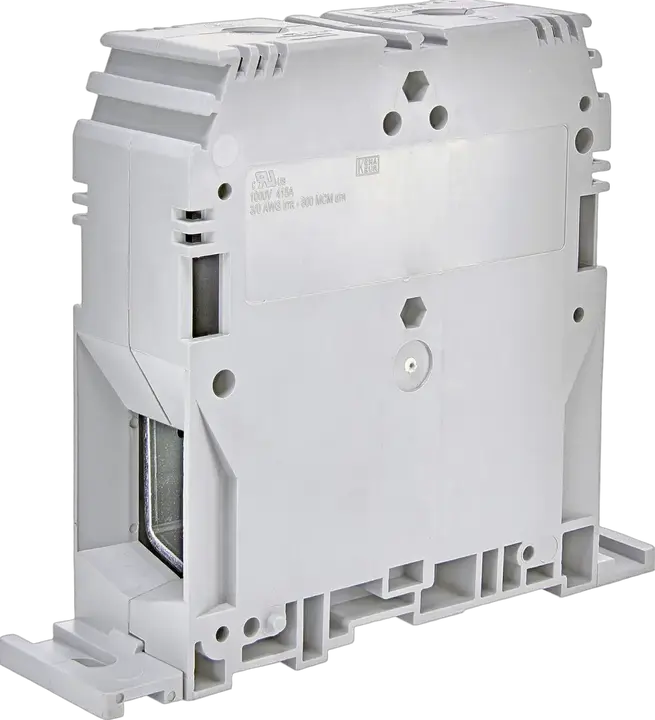

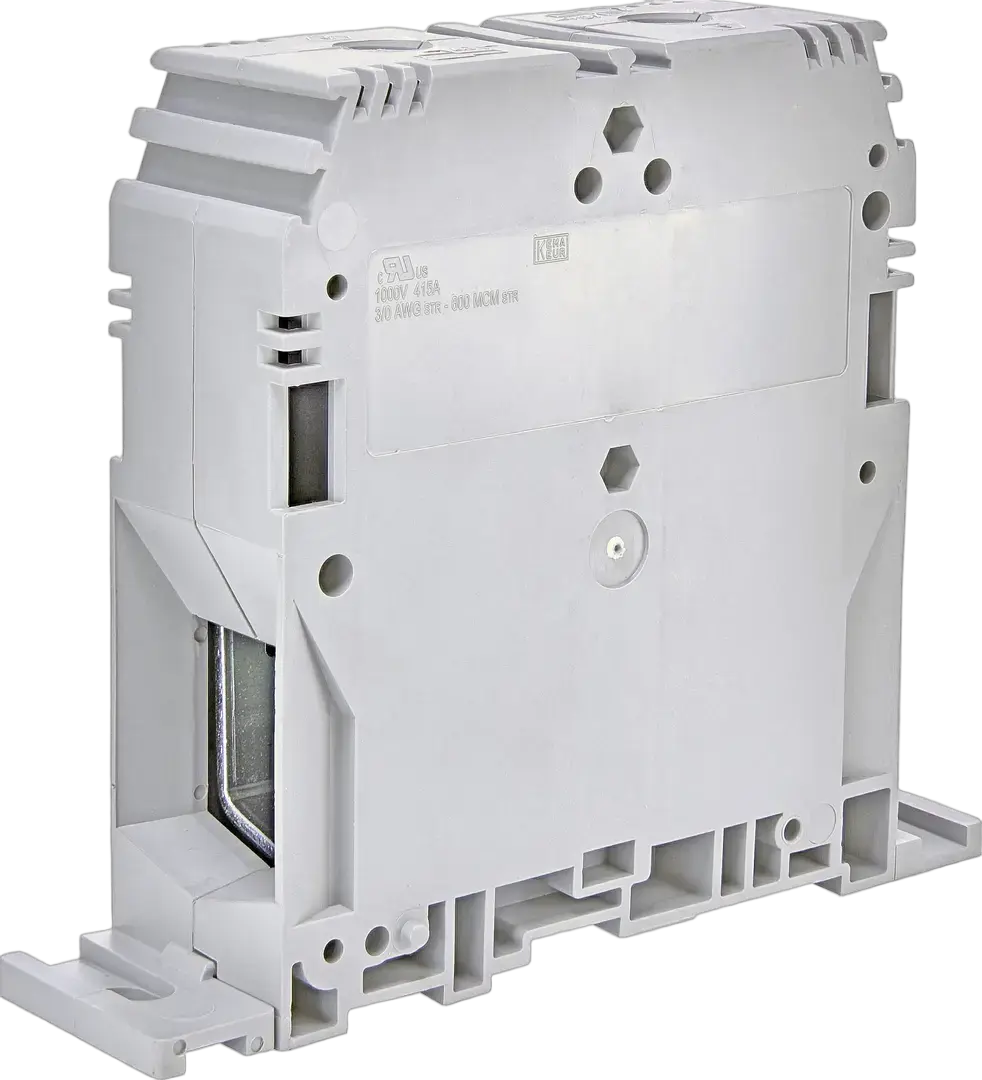

ESC-GPA.240/FIX Montāžas skavas

ETI kods:: 003903214
Nominālais maiņstrāvas spriegums:: 1000 V
Nominālais līdzstrāvas spriegums:: 1000 V
Kataloga grupa 1:: ES varžtiniai laidų gnybtai
Montāžas veids:: Base plate mounting
Tips:: ES Screw Type Terminal Blocks
Līmenis:: Viengubas
Krāsa:: Pilkas
Nominālais šķērsgriezums:: 240 mm²
Nominālais impulsa izturības spriegums Uimp (kV):: 12 kV
Maksimālā strāva ar nominālo šķērsgriezumu (mm2):: 415 mm²
Savienojams vadītāja šķērsgriezums - ciets kodols (mm2):: 50-300 mm²
Šķērssavienojums:: No
Nepieciešama beigu sadaļa:: No

Piederumi

Produkts

EAN code for a single product: 3838895860426
Svars: 0,555 kg
Net width: 41 mm
Net height: 134 mm
Net depth: 114,85 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 4 pcs
EAN code for a transport packaging: 3838895830634
Transport packaging weight: 2,144 kg
Transport Packaging Dimensions Height: 115 mm
Transport Packaging Dimensions Width: 245 mm
Transport Packaging Dimensions Depth: 155 mm
Transport packaging volume: 4,226 dm³
Pallet quantity: 672 pcs
Customs tariff: 85369010

Width: 37 mm
Material insulation body: Thermoplastic
Rated current In: 415 A
Mounting method: Direct mounting
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Type of electrical connection 2: Screw connection
Rated voltage: 1 000 V
Colour: Grey
Height: 115 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 50 mm²
Connectable conductor cross section multi-wired(Min): 95 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 95 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 95 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 300 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 240 mm²
Connectable conductor cross section multi-wired(Max): 240 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 240 mm²

ETIM klasifikācija – versija 9.0
