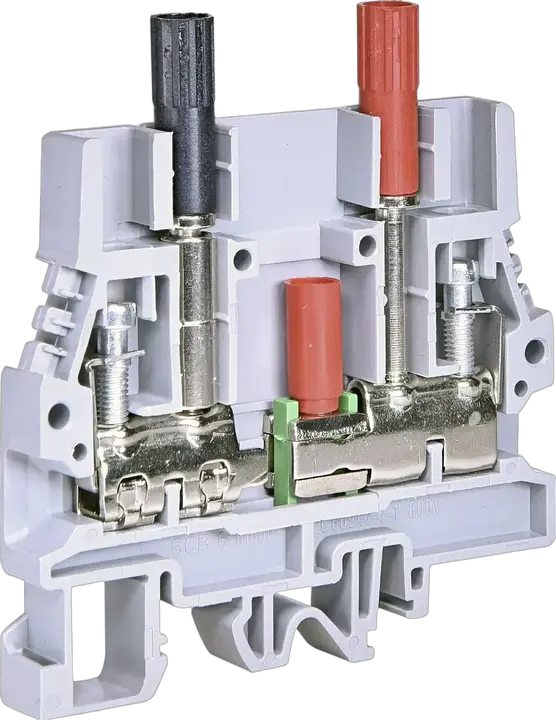

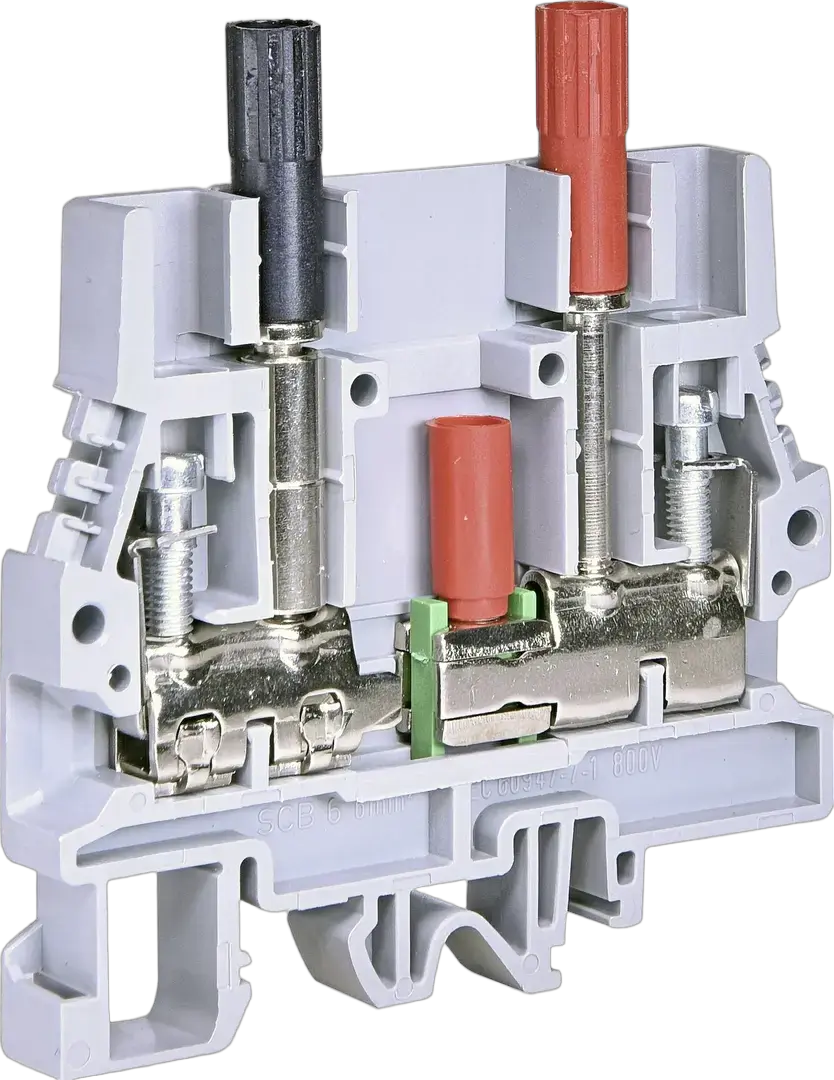

ESC-SCB.6/CD Montāžas skavas

ETI kods:: 003903222
Nominālais maiņstrāvas spriegums:: 800 V
Nominālais līdzstrāvas spriegums:: 800 V
Kataloga grupa 1:: ES varžtiniai laidų gnybtai
Montāžas veids:: TH 35
Tips:: ES Screw Type Terminal Blocks
Krāsa:: Pilkas
Nominālais šķērsgriezums:: 6 mm²
Nominālais impulsa izturības spriegums Uimp (kV):: 8 kV
Maksimālā strāva ar nominālo šķērsgriezumu (mm2):: 41 mm²
Savienojams vadītāja šķērsgriezums - ciets kodols (mm2):: 5-10 mm²
Šķērssavienojums:: No
Nepieciešama beigu sadaļa:: Yes
Funkcija:: Measuring terminals ES

Piederumi

Produkts

EAN code for a single product: 3838895861201
Svars: 0,039 kg
Net width: 8,2 mm
Net height: 69,5 mm
Net depth: 72,4 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 80 pcs
EAN code for a transport packaging: 3838895830764
Transport packaging weight: 3,186 kg
Transport Packaging Dimensions Height: 75 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 210 mm
Transport packaging volume: 4,568 dm³
Pallet quantity: 12 480 pcs
Customs tariff: 85369010

Type of cross disconnection: Sliding
Width: 8 mm
Material insulation body: Thermoplastic
Rated current In: 41 A
Mounting method: DIN rail (top hat rail)/G-rail TH35/G32
Number of levels: 1
Type of electrical connection 1: Screw connection
Type of slitting: Sliding
Number of clamp positions per level: 2
Closing plate required: Jā
Type of electrical connection 2: Screw connection
Rated voltage: 800 V
Colour: Grey
With integrated test socket: Jā
Height: 77 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,5 mm²
Connectable conductor cross section multi-wired(Min): 0,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,5 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 10 mm²
Connectable conductor cross section multi-wired(Max): 10 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 6 mm²

ETIM klasifikācija – versija 9.0
