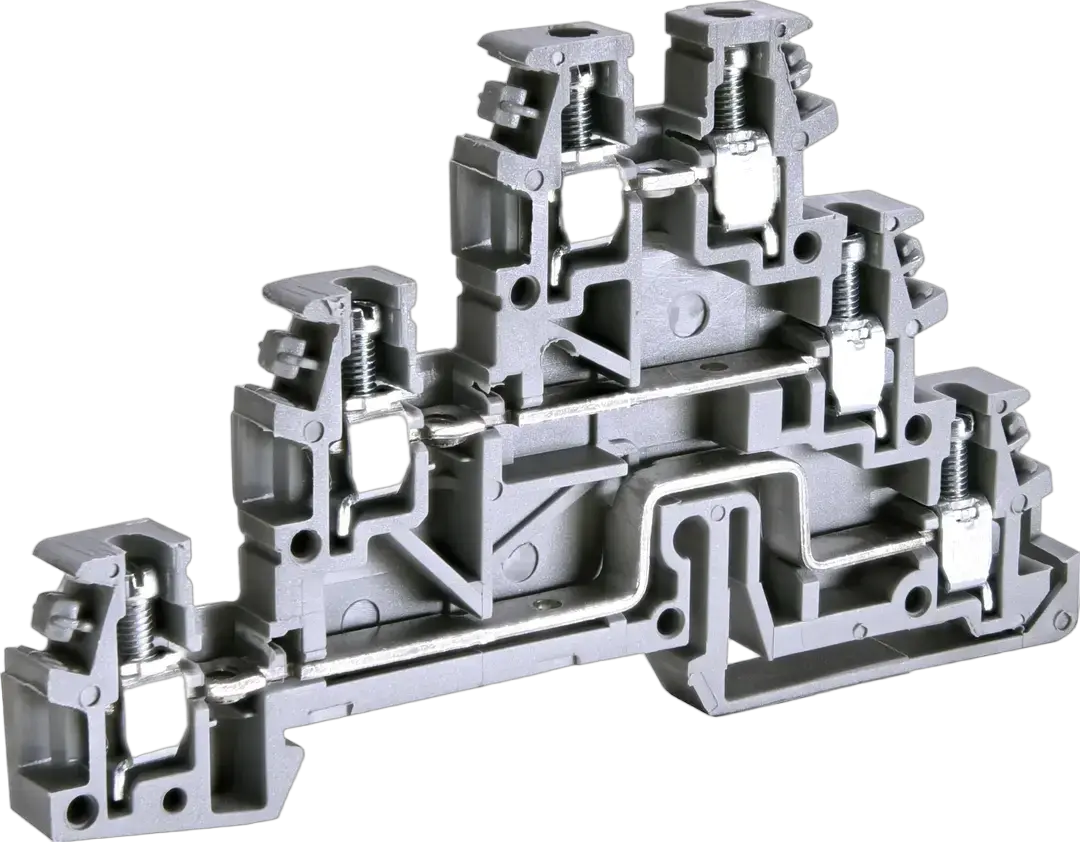

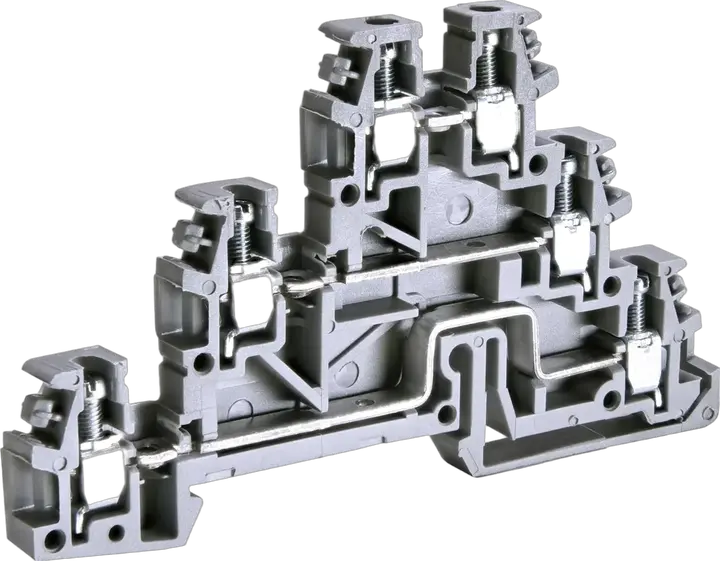

ESC-TLD.2 Montāžas skavas

ETI kods:: 003903247
Nominālais maiņstrāvas spriegums:: 250 V
Nominālais līdzstrāvas spriegums:: 250 V
Kataloga grupa 1:: ES varžtiniai laidų gnybtai
Montāžas veids:: TH 35
Tips:: ES Screw Type Terminal Blocks
Līmenis:: Trigubas
Krāsa:: Pilkas
Nominālais šķērsgriezums:: 2.5 mm²
Nominālais impulsa izturības spriegums Uimp (kV):: 4 kV
Maksimālā strāva ar nominālo šķērsgriezumu (mm2):: 24 mm²
Savienojams vadītāja šķērsgriezums - ciets kodols (mm2):: 2-4 mm²
Šķērssavienojums:: No
Nepieciešama beigu sadaļa:: Yes

Piederumi

Produkts

EAN code for a single product: 3838895862895
Svars: 0,017 kg
Net width: 6,2 mm
Net height: 85,2 mm
Net depth: 50,5 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 125 pcs
EAN code for a transport packaging: 3838895843481
Transport packaging weight: 2,29 kg
Transport Packaging Dimensions Height: 75 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 210 mm
Transport packaging volume: 4,568 dm³
Pallet quantity: 19 500 pcs
Customs tariff: 85369010

Cross connectable: Jā
Width: 85 mm
Material insulation body: Thermoplastic
Rated current In: 24 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 3
LED switching for: No
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Closing plate required: Jā
Type of electrical connection 2: Screw connection
Rated voltage: 250 V
Colour: Grey
Height: 52 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²
Connectable conductor cross section multi-wired(Max): 4 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 2,5 mm²

ETIM klasifikācija – versija 9.0
