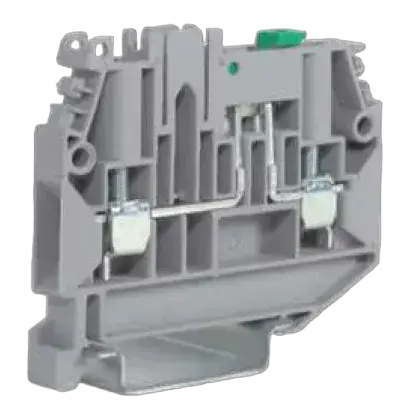

ESC-CBS.4 Sadalošais modulis

ETI kods:: 003903380
Nominālais maiņstrāvas spriegums:: 630 V
Nominālais līdzstrāvas spriegums:: 630 V
Tips:: ES Screw Type Terminal Blocks
Krāsa:: Pilkas
Nominālais šķērsgriezums:: 2 mm²
Nominālais impulsa izturības spriegums Uimp (kV):: 6 kV
Maksimālā strāva ar nominālo šķērsgriezumu (mm2):: 25 mm²
Savienojams vadītāja šķērsgriezums - ciets kodols (mm2):: 2-6 mm²
Šķērssavienojums:: Yes
Nepieciešama beigu sadaļa:: Yes

Produkts

EAN code for a single product: 3838400142283
Svars: 12,5 g
Net width: 5 mm
Net height: 57 mm
Net depth: 52 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 80 pcs
EAN code for a transport packaging: 3838400142276
Transport packaging weight: 1,06 kg
Transport Packaging Dimensions Height: 55 mm
Transport Packaging Dimensions Width: 240 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1,98 dm³
Pallet quantity: 36 000 pcs
Customs tariff: 85369010

Type of cross disconnection: Swivelling
Material insulation body: Thermoplastic
Rated current In: 24 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Type of slitting: Swivelling
Number of clamp positions per level: 2
Closing plate required: Jā
Type of electrical connection 2: Screw connection
Rated voltage: 630 V
Colour: Grey
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 6 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 6 mm²
Connectable conductor cross section multi-wired(Max): 6 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 4 mm²

ETIM klasifikācija – versija 9.0
