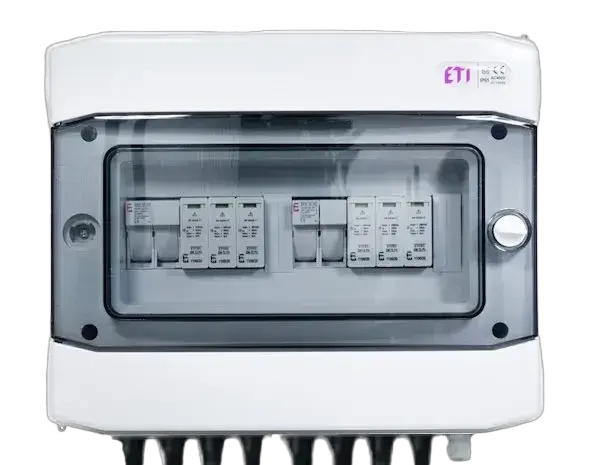

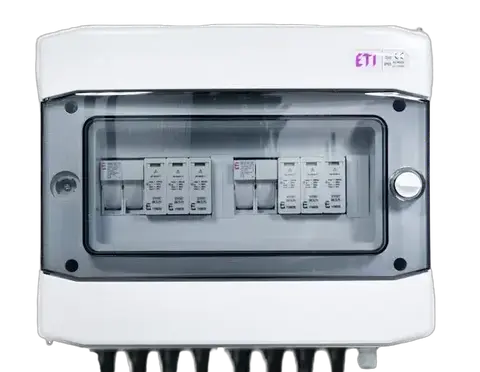

Attēls no RFVE1100/12-DC2/2-16-EMT2-C

RFVE1100/12-DC2/2-16-EMT2-C Sadalošais panelis

ETI kods:: 001107011
Ievadu skaits:: 2
Nominālais līdzstrāvas spriegums:: 1100 V
Nominālā strāva:: 16 A

Tehnisko datu katalogs

Produkts

Svars: 3 kg
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838400114211
Transport packaging weight: 2,92 kg
Transport Packaging Dimensions Height: 259 mm
Transport Packaging Dimensions Width: 319 mm
Transport Packaging Dimensions Depth: 144 mm
Transport packaging volume: 11,897 dm³
Pallet quantity: 84 pcs
Customs tariff: 85371098

Width: 259 mm
For fuse size: 10x38 mm
Max. input voltage DC: 1 100 V
Degree of protection (IP): IP65
Impact strength: IK08
Fuse size input: 16 A
Fuse type: gPV (photovoltaic protection)
Type of inlet: Other
Number of string inputs: 2
Depth: 144 mm
Max. output current: 16 A
Category type 2: Jā
Colour: Grey
With grounding connection: Jā
Max. input current per string: 16 A
String protection: 2-pole
Material: Plastic
Height: 319 mm
Operating temperature(Min): -15 °C
Operating temperature(Max): 40 °C

ETIM klasifikācija – versija 9.0

001107011 Sadalošais panelis RFVE1100/12-DC2/2-16-EMT2-C Green protect PV distribution boards 1, 2 inputs 12 modules 1100V d.c.16 A d.c.Internacionāls Solutions PV sadales Ievadu skaits: 2 Nominālais līdzstrāvas spriegums: 1100 V/1100 V Nominālā strāva: 16 A/16 A Sadalošais panelis TOWAR Ievadu skaits: 2 Nominālais līdzstrāvas spriegums: 1100 V/1100 V Nominālā strāva: 16 A/16 A
