001107045

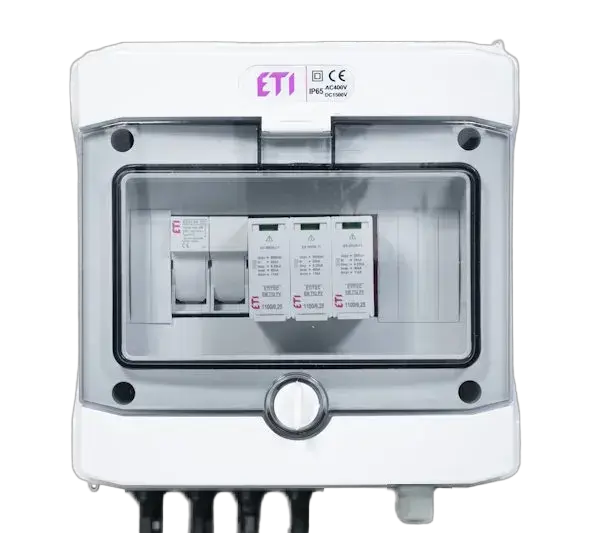

Attēls no RFVE1100/8-DC1/1-16-EMT12-C

RFVE1100/8-DC1/1-16-EMT12-C Sadalošais panelis

ETI kods:: 001107045
Ievadu skaits:: 1
Nominālais līdzstrāvas spriegums:: 1100 V
Nominālā strāva:: 16 A

Tehnisko datu katalogs

Produkts

Svars: 1,59 kg
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838400114587
Transport packaging weight: 1,51 kg
Transport Packaging Dimensions Height: 201 mm
Transport Packaging Dimensions Width: 202 mm
Transport Packaging Dimensions Depth: 120 mm
Transport packaging volume: 4,872 dm³
Pallet quantity: 205 pcs
Customs tariff: 85371098

Number of inputs: 1
Width: 202 mm
For fuse size: 10x38 mm
Max. input voltage DC: 1 100 V
Degree of protection (IP): IP65
Impact strength: IK08
Fuse size input: 16 A
Fuse type: gPV (photovoltaic protection)
Type of inlet: Other
Number of string inputs: 2
Depth: 120 mm
Max. output current: 16 A
Category type 2: Jā
Colour: Grey
Category type 1: Jā
With grounding connection: Jā
Max. input current per string: 16 A
String protection: 2-pole
Material: Plastic
Height: 201 mm
Operating temperature(Min): -15 °C
Operating temperature(Max): 40 °C

ETIM klasifikācija – versija 9.0

001107045 Sadalošais panelis RFVE1100/8-DC1/1-16-EMT12-C Green protect PV distribution boards 1, 2 inputs 8 modules 1100V d.c.16 A d.c.Internacionāls Solutions PV sadales Ievadu skaits: 1 Nominālais līdzstrāvas spriegums: 1100 V/1100 V Nominālā strāva: 16 A/16 A Sadalošais panelis TOWAR Ievadu skaits: 1 Nominālais līdzstrāvas spriegums: 1100 V/1100 V Nominālā strāva: 16 A/16 A
