AC/DC power supplies convert alternating current (AC) from a power source, like a wall outlet, into direct current (DC). Many electronic devices require DC power to function, making AC/DC power supplies crucial components in various applications.AC/DC switching stabilized power supplies are designed to maintain a constant DC output voltage, even when the input AC voltage fluctuates. These supplies offer advantages such as high efficiency and compact size.

004804084

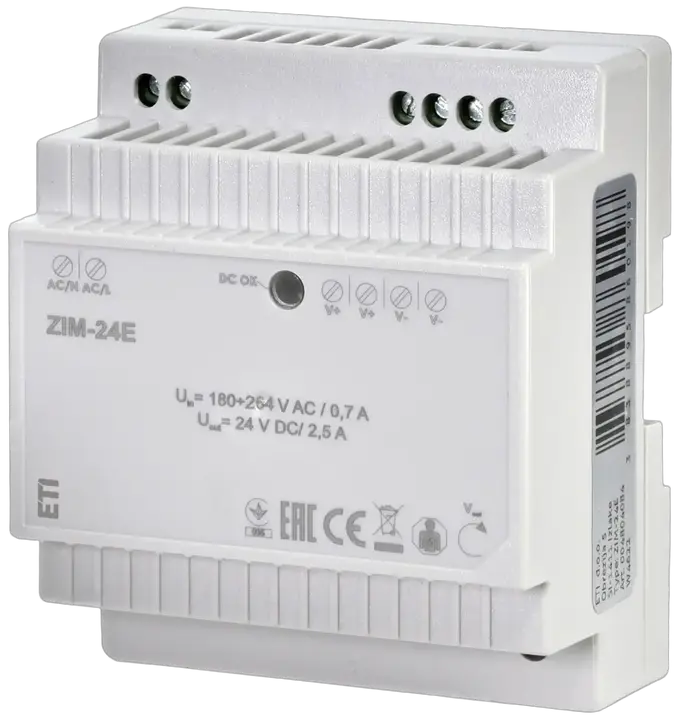

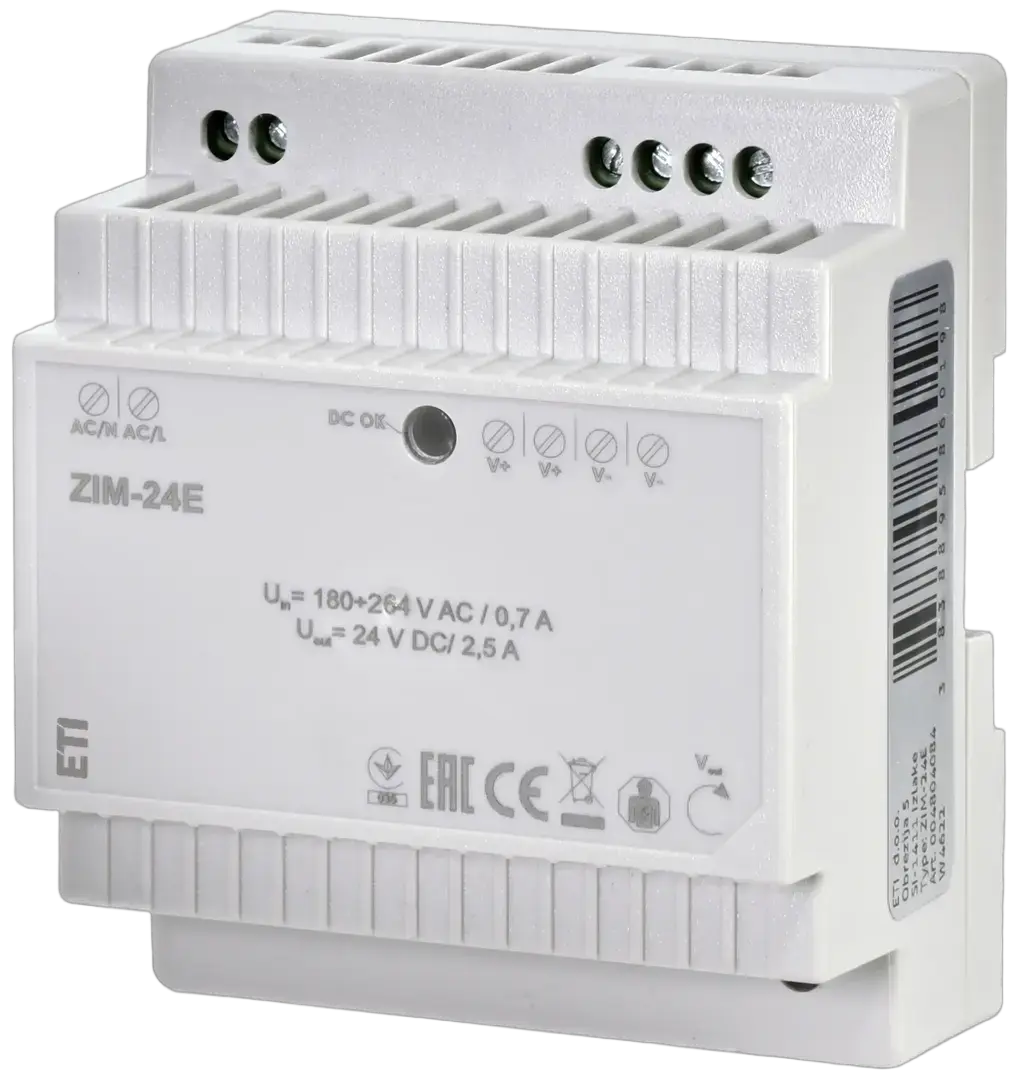

Attēls no ZIM-24E

ZIM-24E Barošanas bloks

ETI kods:: 004804084
Montāžas veids:: TH 35
DC nominālais vadības barošanas spriegums Uc (V):: 216-28 V
IP aizsardzība:: IP20
Izejas spriegums:: 24 V
Izejas strāva (A):: 2,5 A

Produkts

Svars: 0,24 kg
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838895860198
Transport packaging weight: 0,24 kg
Transport packaging volume: 0,53 dm³
Pallet quantity: 1 800 pcs
Customs tariff: 85043180

Short-circuit-proof: Jā
Nominal value output voltage 1: 24 V
Degree of protection (IP): IP20
Voltage type (supply voltage): AC
Secondary voltage adjustable: Jā
Stabilized: Jā
Modular version: Jā
Type of electric connection: Screw connection
Rail mounting possible: Jā
Width in number of modular spacings: 4,5
Power output: 60 W
Rated supply voltage AC 50 Hz(Min): 180 V
1st secondary output voltage(Min): 21,6 V
1st secondary output voltage(Max): 28 V
Rated supply voltage AC 50 Hz(Max): 264 V

ETIM klasifikācija – versija 9.0

004804084 Barošanas bloks ZIM-24E Unassigned Internacionāls Transformatori un barošanas avoti Barošanas avoti AC/DC IP aizsardzība: IP20 Izejas strāva (A): 2.5 A Izejas spriegums: 24 V Barošanas bloks IP aizsardzība: IP20 Izejas spriegums: 24 V Izejas strāva (A): 2.5 A
