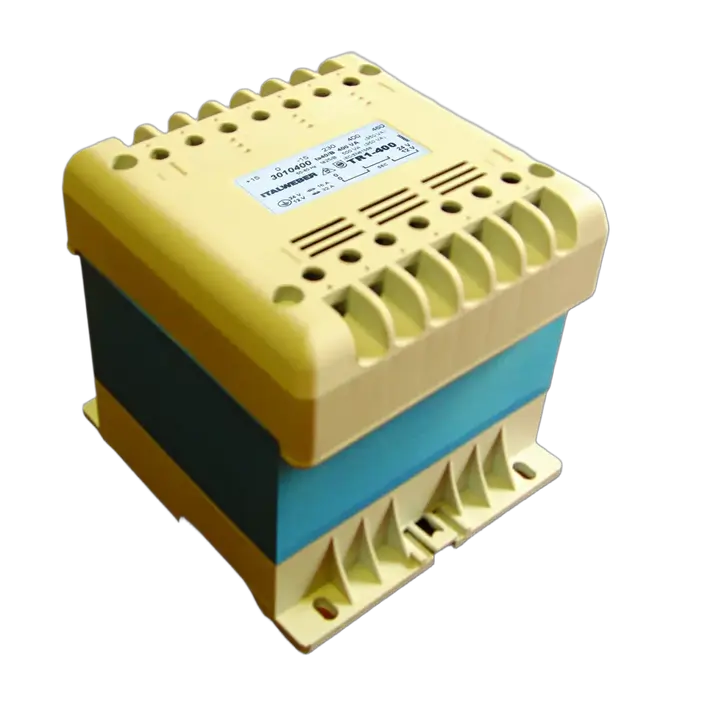

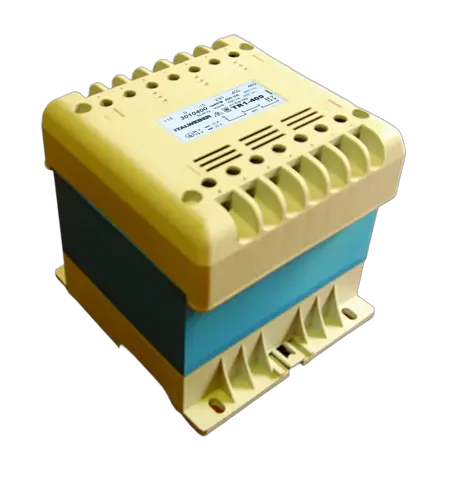

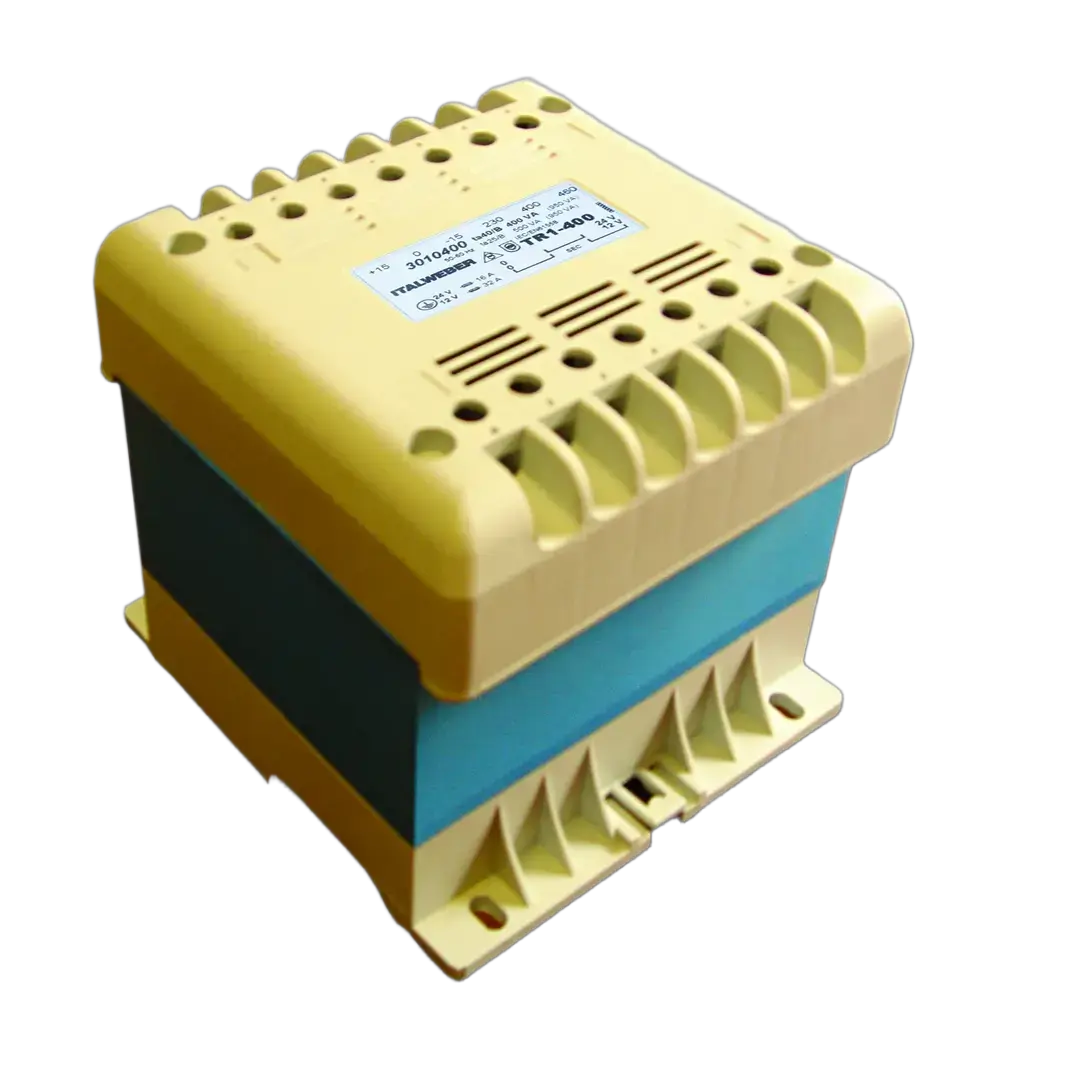

TR EU 1f 0-55 0-55V 300VA TH Transformators

ETI kods:: 003801840
Kataloga grupa 1:: Vienfazis transformatorius TH35
IP aizsardzība:: IP20
Fāžu skaits:: Single
Jauda (VA):: 300 VA
Primārais spriegums (Up):: 230/400 V
Sekundārais spriegums (Us):: 55-110 V

Produkts

Svars: 5 kg
Net width: 126 mm
Net height: 123 mm
Net depth: 135 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838895480136
Transport packaging weight: 5 kg
Transport Packaging Dimensions Height: 126 mm
Transport Packaging Dimensions Width: 123 mm
Transport Packaging Dimensions Depth: 135 mm
Transport packaging volume: 2,1 dm³
Pallet quantity: 148 pcs
Customs tariff: 85043180

Degree of protection (IP): IP20
Rated apparent power: 300 VA
Built as isolating transformer: Jā
Type of insulation material according to IEC 85: B
Secondary voltage 3(Min): 110 V
Primary voltage 1(Min): 195,5 V
Secondary voltage 2(Min): 55 V
Secondary voltage 1(Min): 55 V
Primary voltage 2(Min): 340 V
Secondary voltage 3(Max): 110 V
Primary voltage 2(Max): 460 V
Secondary voltage 1(Max): 55 V
Secondary voltage 2(Max): 55 V
Primary voltage 1(Max): 264,5 V

ETIM klasifikācija – versija 9.0

Eplan

Programmatūra tiek nodrošināta tāda, kāda tā ir, bez jebkādām garantijām. Autors nav pienākumā sniegt atbalstu, servisu, labojumus vai jauninājumus bezmaksas programmatūrai vai draiberiem.

003801840 Transformators TR EU 1f 0-55 0-55V 300VA TH ETITRAFO Single phase safety transformer IP20 class B EURO DIN rail mounted Internacionāls Transformatori un barošanas avoti Vienfāzes transpriekšmatvaii IP20 uzstādīt uz sliedes Primārais spriegums (Up): 230 V/400 V Sekundārais spriegums (Us): 55 V-110 V IP aizsardzība: IP20 Jauda (VA): 300 VA Fāžu skaits: Single Kataloga grupa 1: Vienfazis transformatorius TH35 Transformators Kataloga grupa 1: Vienfazis transformatorius TH35 IP aizsardzība: IP20 Fāžu skaits: Single Jauda (VA): 300 VA Primārais spriegums (Up): 230 V/400 V Sekundārais spriegums (Us): 55 V-110 V
