The ETISIG range offers a comprehensive selection of pushbuttons, selector switches, LED indicators, contact blocks and accessories for industrial control and signalling applications. Its modular design enables flexible configuration of control stations for a wide variety of electrical installations.

004771600

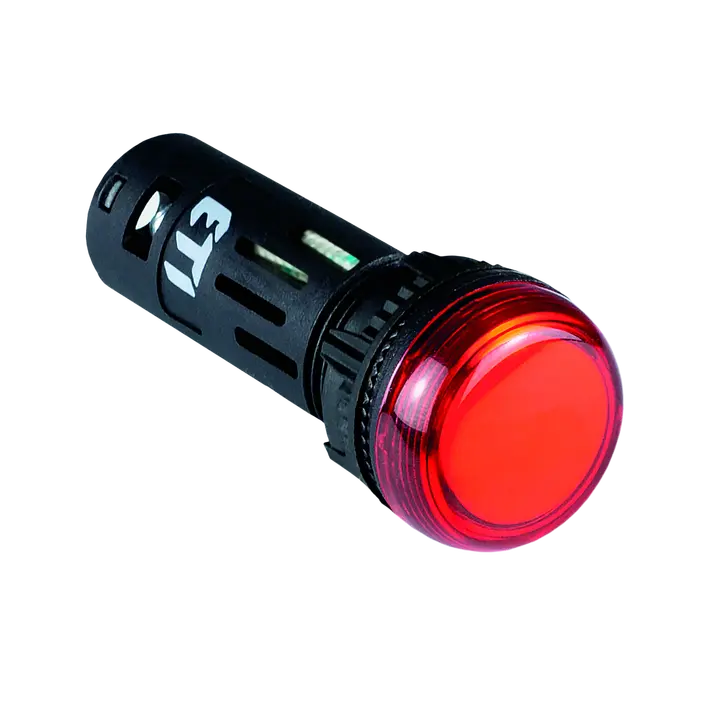

Attēls no ECLI-16-024C-R

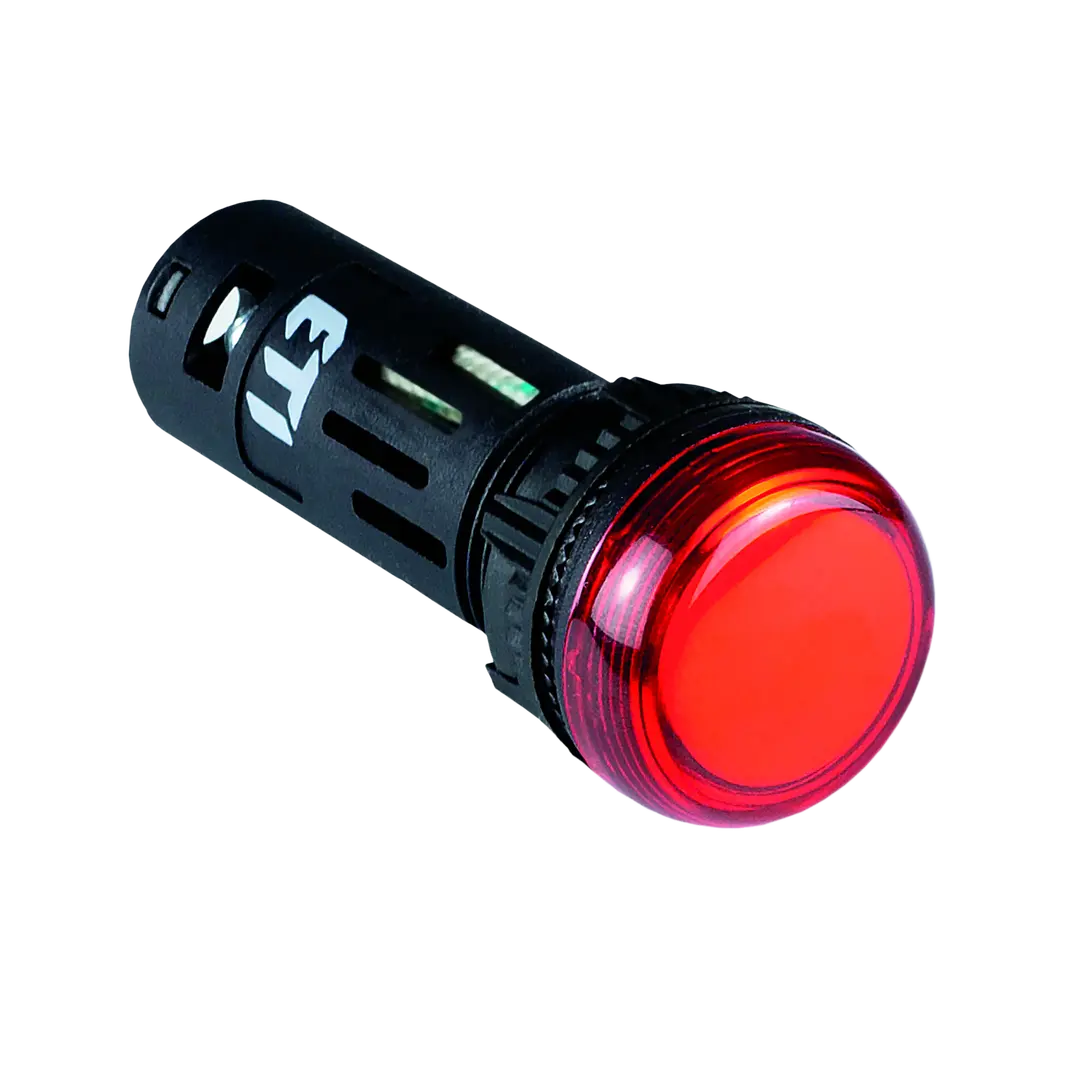

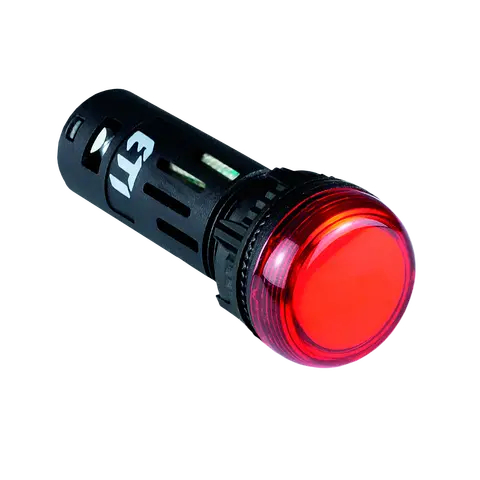

ECLI-16-024C-R Signāllampiņa

ETI kods:: 004771600
Funkcija:: LED integral indicator
Nominālais maiņstrāvas spriegums:: 24 V
Krāsa:: Raudonas
Approvals:: CE
Tightening torque (Nm):: 0.5 Nm
Tips:: Black body
Cauruma diametrs (mm):: 16 mm
Kataloga grupa 1:: Exxx
Surge Test (kV):: 2 kV
Sprieguma veids:: AC/DC
IP aizsardzība:: IP65
HV test (kV):: 1,5 kV
Type of LED:: SMD
Darba temperatūra:: -30-60 °C
Life (burning hours):: 100 000 h
Nominālais šķērsgriezums:: 0.5-2.5 mm²
Storage temperature (°C):: -25-70 °C

Produkts

Svars: 0,009 kg
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 20 pcs
EAN code for a basic packaging: 3838895873921
Basic packaging weight: 0,25 kg
Basic packaging volume: 1,12 dm³

Transporta iepakojums

Transport packaging quantity: 300 pcs
EAN code for a transport packaging: 3838895873983
Transport packaging weight: 4,25 kg
Transport packaging volume: 26,9 dm³
Pallet quantity: 11 100 pcs
Customs tariff: 85395100

Colour lens: Red
Voltage type: AC
Type of lamp socket: LED
Degree of protection (IP): IP65
Material front ring: Plastic
Hole diameter: 16 mm
Construction type lens: Round
Type of lens: Flat
Type of electric connection: Screw connection
Number of indicator lights: 1
Rated operating voltage Ue(Min): 24 V
Rated operating voltage Ue(Max): 24 V

ETIM klasifikācija – versija 9.0
